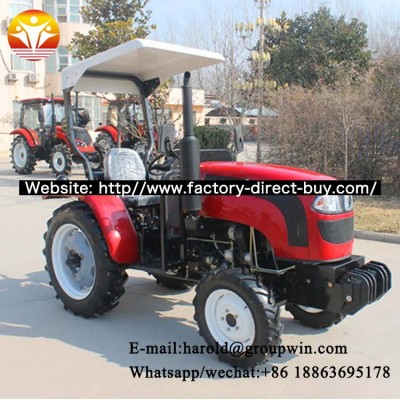

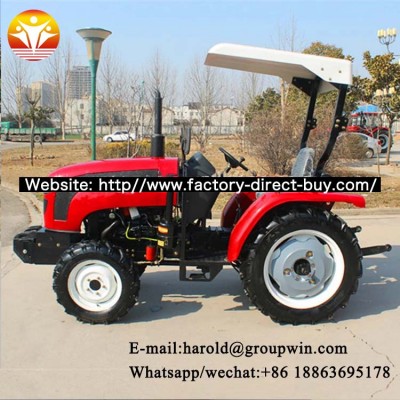

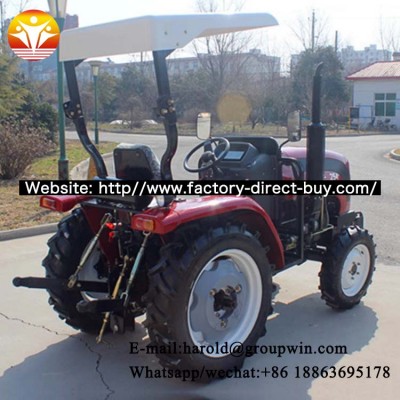

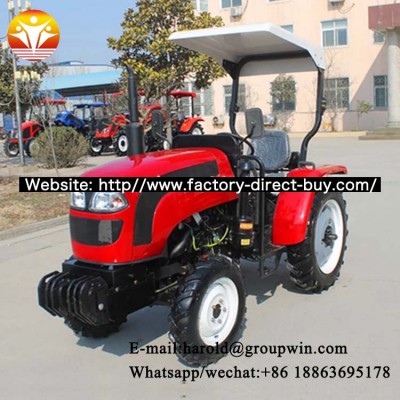

small agriculture machinery 25 hp mini tractores agricolas

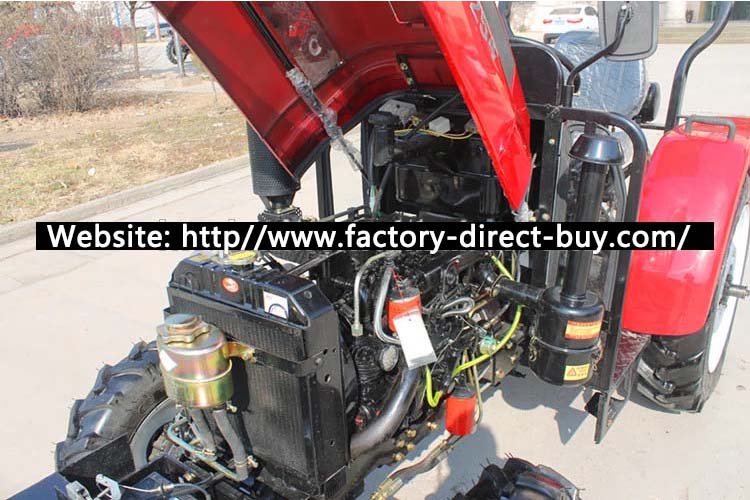

1.Standard mini tractors use directly injection vertical water cooled 4-stroke LAIDONG engine.
2.mini farm tractor with luxury seat wheel tread use 1065mm(F),1200mm(R).
3.Sunroof agriculture tractor equip 41.3 L fuel tank.
4.Tyre of chese cheap mini tractor F/R(mm):5.5—16/9.5—24(2 WD),6.0—16/9.5—24(4 WD).
5.The equipment compact small tractor clutch use Single,Dry,Single Stage Type.
6.Wheeled farm tractor PTO:Φ35×6,Speed:720 rpm.Linkage:I Rear Mount 3-point Linkage.
Product parameters
Basic configuration | |||
Model | QLN-250/254 | ||
Dimensions | Length×Width×Height(mm) | 3200×1500×1880 | |
Wheel Tread(mm) | Front Wheel(mm) | 1065 | |
Rear Wheel(mm) | 1200 | ||
Min.Ground Clearance(mm) | 265(4WD) 330(2WD) | ||
Dry Mass | Complete tractor weight(KG) | 1330(4WD) 1100(2WD) | |
Engine | Trade Mark or Brand | LAIDONG | |
Engine Model | Vertical Water Cooled 3-stroke | ||
Directly Injection | |||
Number of Cylinder | 3 | ||
Cooling System Type | Water Cooled | ||
Rated Power(kw) | 18.4KW | ||
Fuel Tank | Volume(L) | 41.3 | |
Transmission System | Clutch | Single,Dry,Single Stage Type | |
Gear Box | F8+R2 | ||
Differential | Closed 4-planetary Gears | ||
Differential Lock | Mechanical Sliding Sleeve | ||
Braking System | Mechanical,dry type | ||
Running System | Tyre Model | F/R(2WD) | 5.5—16/9.5—24 |
F/R(4WD) | 6.0—16/9.5—24 | ||
Steering System | Mechanical for 2wd tractor, and Hydraulic steering for 4wd tractor | ||
Working Device | Hydraulic System Type | Partial seperated lifter | |

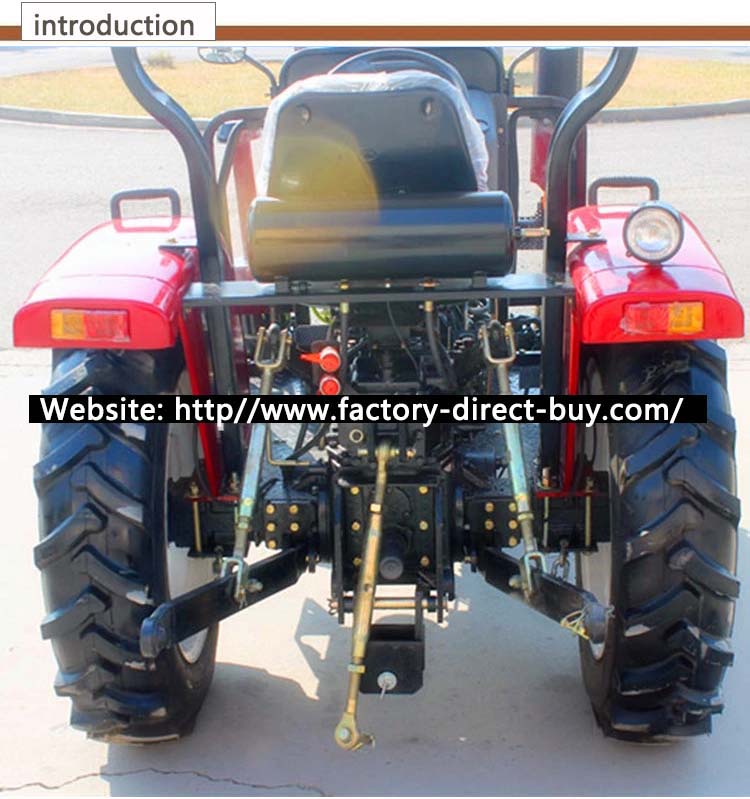

Linkage Type | I Rear Mount 3-point Linkage | ||
PTO(Standard) | Φ35×6 | ||
PTO Speed(r/min) | 720 | ||
Drawbar Type | Fixed Drawbar | ||
Standard packing or As per customer's request
Our company has won numerous honors with absolute superiority over the years.

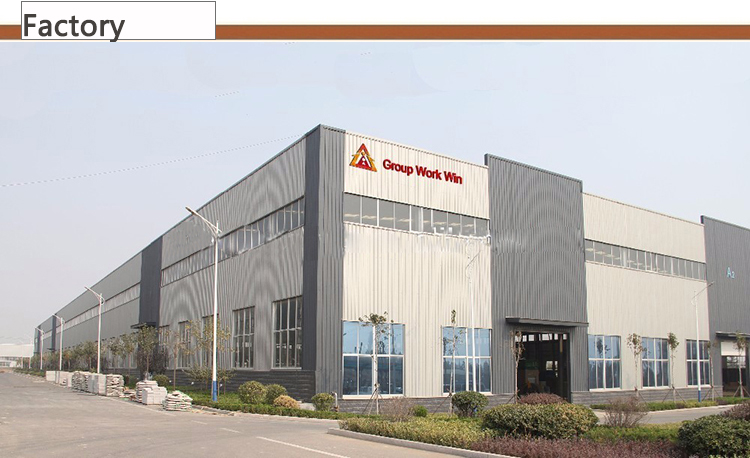

Weifang XiaShan Group Work Win Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best Agricultural machinery for the orders.
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
1.What are your advantages?
Advanced equipment,good price;professional association authentication;scientific and strict production management;superior and high quality service.
2.Can you supply tractor farm implements?
We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.
3.what are your products?
Our products contain walking tractor 10-18 hp, farm tractor 25-220 hp ,harvester and matched agricultural implements.
4.What are your discount items?
We will give you the biggest discount.
5.What's your payment method?
Support L/C,D/A,D/P,T/T,and other secure payment.
6.When do you ship after payment?
Within 10 to 20 working days after delivery.
7.when do contact you?
our sales person is 24*7 online for your service.
