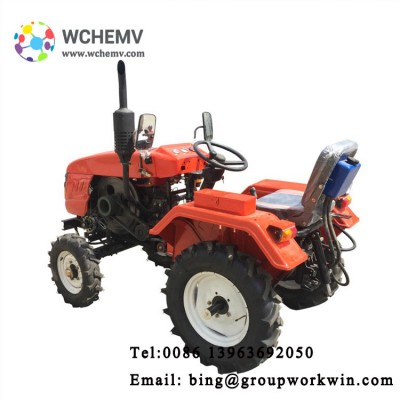

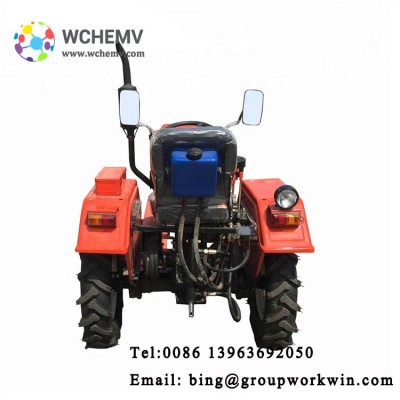

Agricultural machinery 70HP 4 wheel drive tractor for sale
There are many types of tractors: both ordinary type and luxury type, which can meet the needs of different customer groups. The tractor has narrow wheelbase, medium wheelbase and wide wheelbase, which can be used in different areas.
Technical Specification | ||||
No. | Item | Unit | Specification | |
1 | Model | / | WSL-554 | |
2 | Type | / | 4X4 (Four Wheel Drive) | |
3 | Overall Dimension ( L*W*H ) | mm | 3660*1600*2420 | |
4 | Wheel Base | mm | 1830 | |
5 | Tread (Front / Rear) Gauge | mm | 1300 / 1300-1400 | |
6 | Minimum Ground Clearance Distance | mm | 310 | |
7 | Minimum Working Quality | kg | 1625 | |
8 | Maximum Ballast Quality(Front/Rear) | kg | 120 / 100 | |
9 | Gear ( Forward / Reverse ) | / | 8F+4R | |
10 |
Engine | Model | / | Four cylinder, vertical, water cooled, four stroke diesel engines |
11 | Item No. | / | Y4105T | |
12 | Bore X Stroke | mm | 4-105X118 | |
13 | Rated HP | kw | 40.4 | |
14 | Rated Speed | r/min | 2300 | |
15 | Transmission System | Clutch Type | / | 10" dry double-action |
16 | Gearbox Type | / | 4X(2+1) | |
17 | Steering and Braking System | Steering System Type | / | Hydraulic Steering |
18 | Braking System Type | / | disc brake | |
19 | Running System | Tyre Type | / | 8.3-24/14.9-28 |
20 |
Working Device | Suspension System Type | / | Rear Three-Points Links |
21 | Suspension System Catagory | / | Catagory Ⅰ | |
22 | Hydraulic Output Device | / | Two Level | |
23 | The No. of PTO Shaft Splines | 6 Keys | ||
24 | The PTO Shaft Speed | r/min | 540/760 | |
Zhiyan Zhongyihe Multilingual Cross-border E-commerce Service Platform is a cross-border e-commerce public foreign trade service platform in Weifang City. Focus on providing traditional foreign trade enterprises with international trade solutions, enterprise foreign trade team incubation, Internet mode operation, foreign trade full-process custody and other services.
1.Are you tractor supplier or manufacturer?
We are tractor manufacturer. We can provide the complete tractor and spare parts with favorite price, because we are the source.
2.What's your payment method?
Support L/C,D/A,D/P,T/T,and other secure payment.
3.When do you ship after payment?
Within 15 to 20 working days after delivery.
4.when do contact you?
our sales person is 24*7 online for your service.
5.What are your advantages?
Advanced equipment,good price;p
