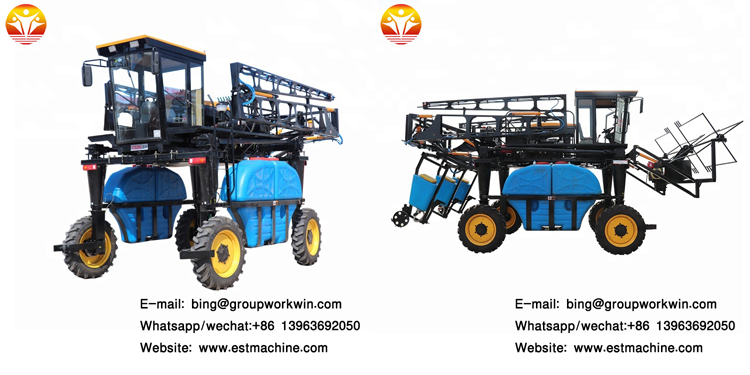

Farm Three Point Hitch ATV Broadcast Levee Spot Sprayer

    for Agriculture

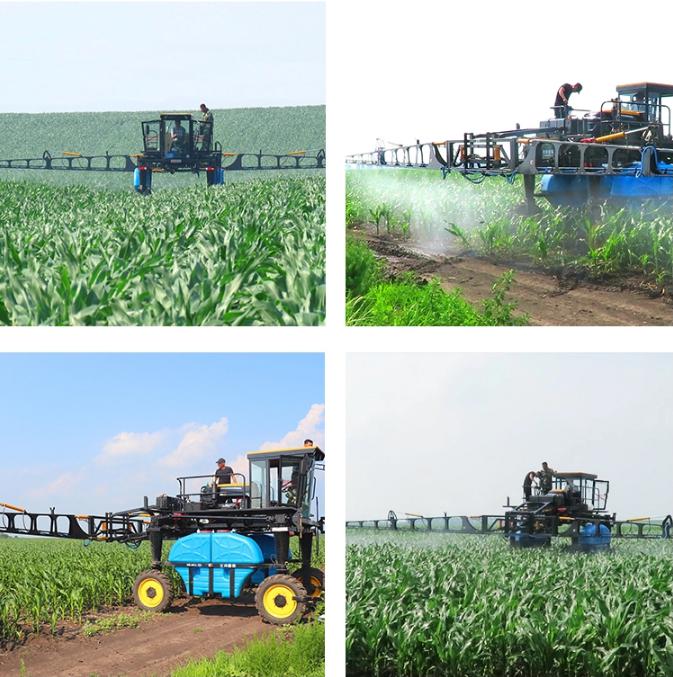

3WPZ-1200G series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain.
Also for lawn,fruiter,vegetable, road side tree. The capacity could be 1200L, the spraying width could be 16m with 53hp.



 Model

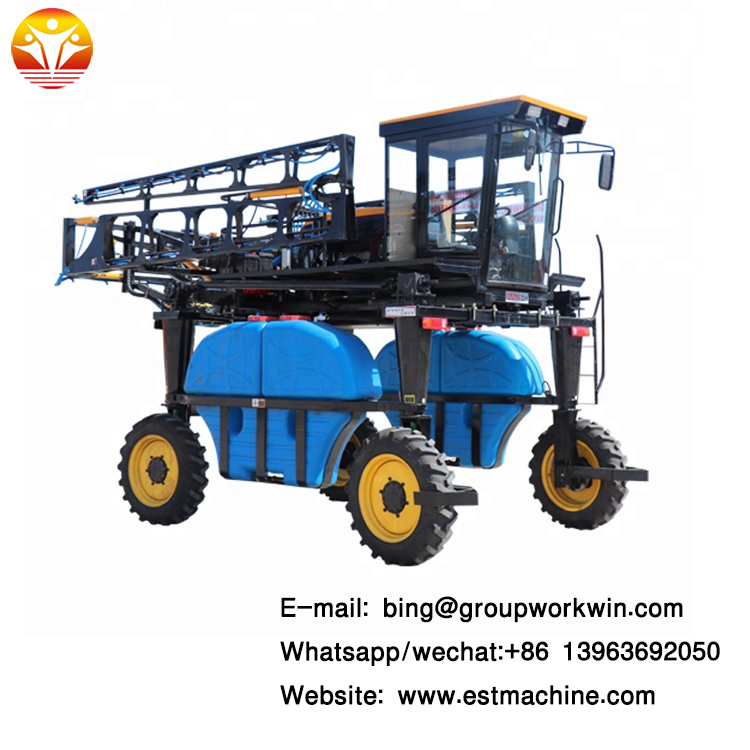

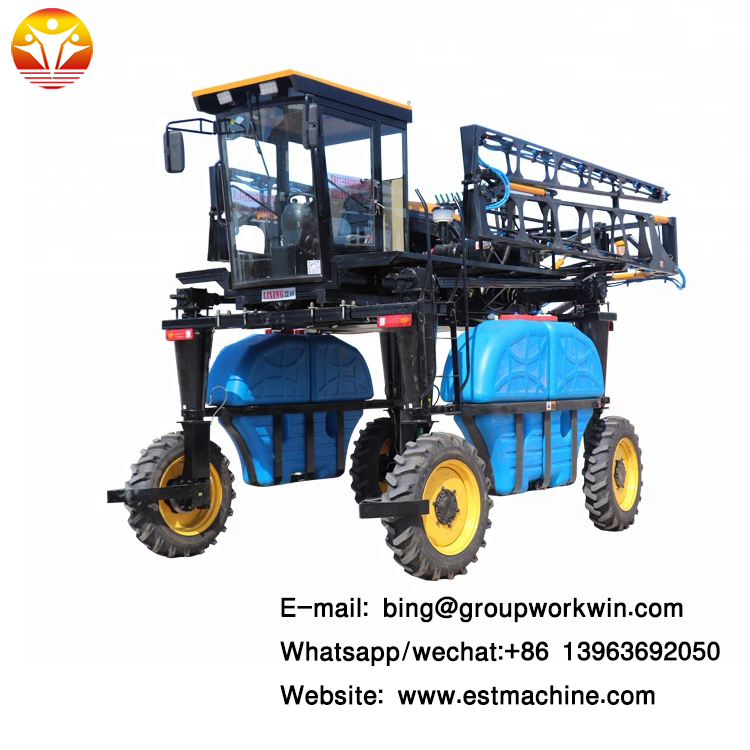

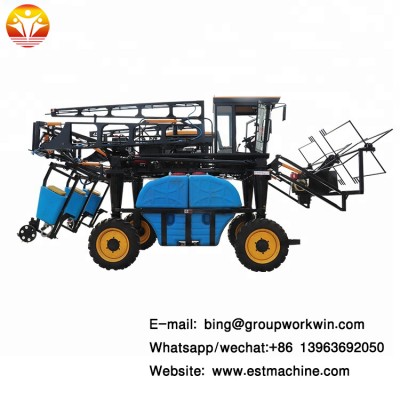

 3WPZ-1200G self-propelled boom sprayer

 Pump type

 Plunger pump

 Engine model

 4L68 (Changchai) turbocharged diesel engine

 Pump model

 OS-5200

 Power / speed

 53hp      2400r/min

 Pump pressure

 0-45kgf/cm²

 Displacement level

 China III

 Pump flow

 200-240L/min

 Gear

 Forward gear 4,reverse gear 1

 Pump speed

 600-800r/min

 Drive mode

 Four-wheel drive

 Tank capacity

 1500L

 Steering mode

 Hydraulic steering

 Spray height

 0.5-3.0m

 Mixing way

 Circulating water mixing

 Nozzle model

 No.3

 Folding way

 Hydraulic folding

 Spray angle

 110 °

 Boom

 16m(customizable)

 Nozzle flow

 1.2L/min

 Ground clearance

 1.8m(customizable)

 System work pressure

 0.3-0.5Mpa

 Wheel track

 1.95-2.6m(adjustable)

 3 filtration system

 Tank inlet, pump inlet, nozzle

 Operating efficiency

 21-30acres / hour

 Battery

 12V/120AH

 Walking speed

 ≤25km/h

 Front tire model

 Tractor tires 9.5-24

 Overall dimension

 5800mm x 2900mm x 3700mm

 Rear tire model

 Tractor tires 9.5-24

 Weight

 3811kg

 Water tank

 15L




Advantages:

This kind of boom sprayer is a tractor mounted sprayer.
Wide working scope,spraying for bean,cotton,corn etc.
Wide spraying with to be 16m max.and the working angle of this tractor sprayer could be adjusted.
The capacity of mounted boom sprayer could be adjusted to meet different need from the user.





JiNan Fangli Group Work Win supply chainCO, LTD.located in weifang, where the headquarters of international kite federation is located, has been providing good products and technical support and sound after-sales service for the company's development and expansion for one year.


Q: What’s your MOQ?

A: Normally our MOQ is 500 units per model, but we can also accept 100-300pcs, it depends on the model.

Q: What’s your payment terms?

A: We could accept L/C sight, T/T ,Paypal etc.

Q: What’s the delivery time?

A: Normally our lead time is 45days, but if the quantity is large, or it’s related to some special components, the lead time would be longer.

Q: Can I get samples?

A: Yes. You pay the sample cost and shipping cost first. We will return you the money back when place official orders.
