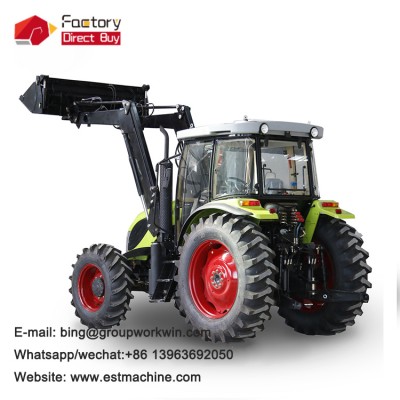

Wheeled Agricultural Tractor Plough
Trailer Front Loader
Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations. Can also do fixed operation power. It consists of engine, transmission, walking, steering, hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices.
It consists of engine, transmission, walking, steering, hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices.
| BTD1204 | BTD1304 | |
Drive type | 4*4 | 4*4 | |
GENERAL SPECIFICATION | |||
Length×Width×Heigh (mm) | 5040*2285*2960 | 5040*2285*2960 | |
Constructional weight(KG) | 4560 | 4560 | |
Ttraction force (KN) | 22.1 | 22.9 | |
Wheel base (mm) | 2810 | 2810 | |
Front wheel tread (mm) | 1923 | 1923 | |
Rear wheel tread (mm) | 2008 | 2008 | |
P.T.O Max.power (Kw) | 94.5 | 99.9 | |
Ground clearance (mm) | 485 | 485 | |
ENGINE | |||
Type | WP6T120E22 | WP6T130E22 | |
Rated power | 105 | 111 | |
Rated revolution (r/min) | 2200 | 2200 | |
Max.torque (n.m) | 606 | 641 | |
TRANSMISSION | |||
clutch | Dry,constant combine,dual acting,independent operation of clutch | ||
The number of gearbox | 12F+4R,12F+12R | ||
WORKING DEVICE | |||
Lifter tilling depth control | Force-position comprehensive control and floating control | ||
Max.lifting capacity (KN) | 21.2 | 22.9 | |
Suspension type | Rear three-point suspension,class 2 | ||
Speed of P.T.O.(r/min) | 540,760,850,1000 for choicing | ||
Processing within 10 working days after receipt of down payment to clarify all technical and commercial projects
Jinan Fangli Group work win supply chain CO., LTD. located in weifang, where the headquarters of international kite federation is located, has been providing good products and technical support and sound after-sales service for the company's development and expansion for one year.
1. Using independent power output device, the transmission is stable, the capacity is large and the speed is fast.
2. Adopt independent circuit of hydraulic steering control system, which is flexible, reliable and energy-saving.
3. The final transmission of planetary gear mechanism has compact structure and large deceleration ratio.
1.Are you tractor supplier or manufacturer?
We are tractor manufacturer. We can provide the complete tractor and spare parts with favorite price, because we are the source.
2.Can you supply tractor farm implements?
We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.
3.What's your payment method?
Support L/C,D/A,D/P,T/T,and other secure payment.
4.When do you ship after payment?
Within 10 to 20 working days after delivery.
5.when do contact you?
our sales person is 24*7 online for your service.
6.What are your discount items?
We will give you the biggest discount.
7.What are your advantages?
Advanced equipment,good price;professional association authentication;scientific and strict production management;superior and high quality service.
