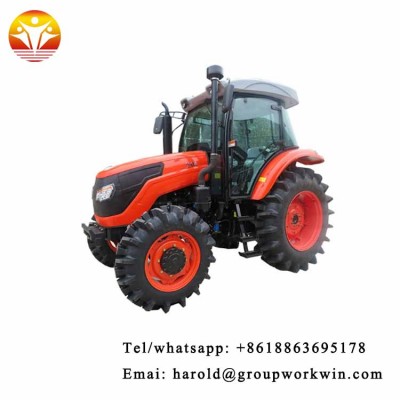

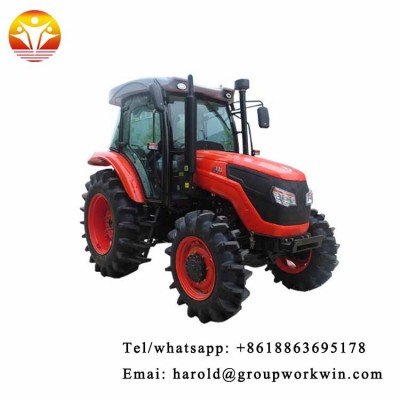

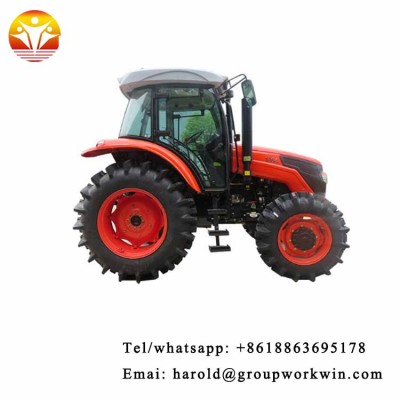

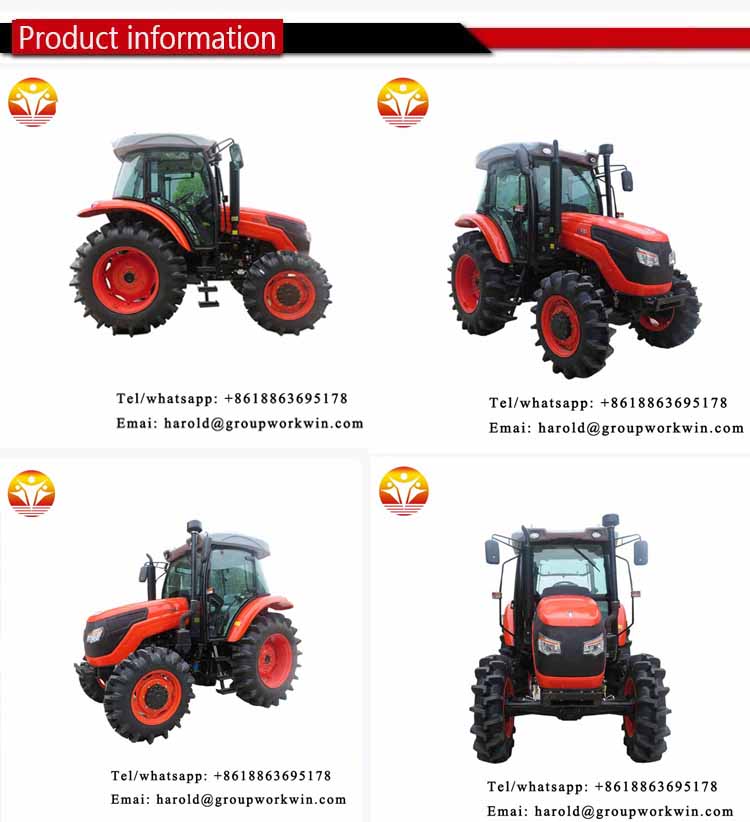

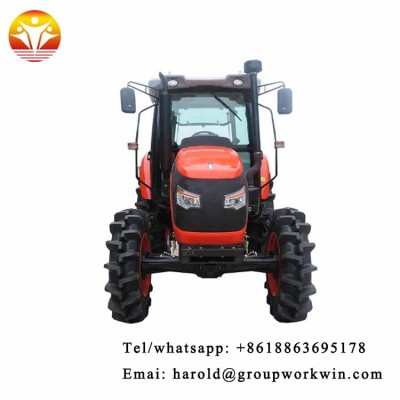

Type：4X4 (Four Wheel Drive)
Wheel Base：2195
Tread (Front / Rear) Gauge：1610-1910 / 1620-2020 (1620)
Technical Specification | ||||
No. | Item | Unit | Specification | |
1 | Type | / | 4X4 (Four Wheel Drive) | |
2 | Wheel Base | mm | 2195 | |
3 | Tread (Front / Rear) Gauge | mm | 1610-1910 / 1620-2020 (1620) | |
4 | Minimum Ground Clearance Distance | mm | 380 (Front Axle) | |
5 | Minimum Working Quality | kg | 3900 | |
6 | Maximum Ballast Quality (Front / Rear) | kg | 220 / 320 | |
7 | Gear ( Forward / Reverse ) | / | 16F+8R | |

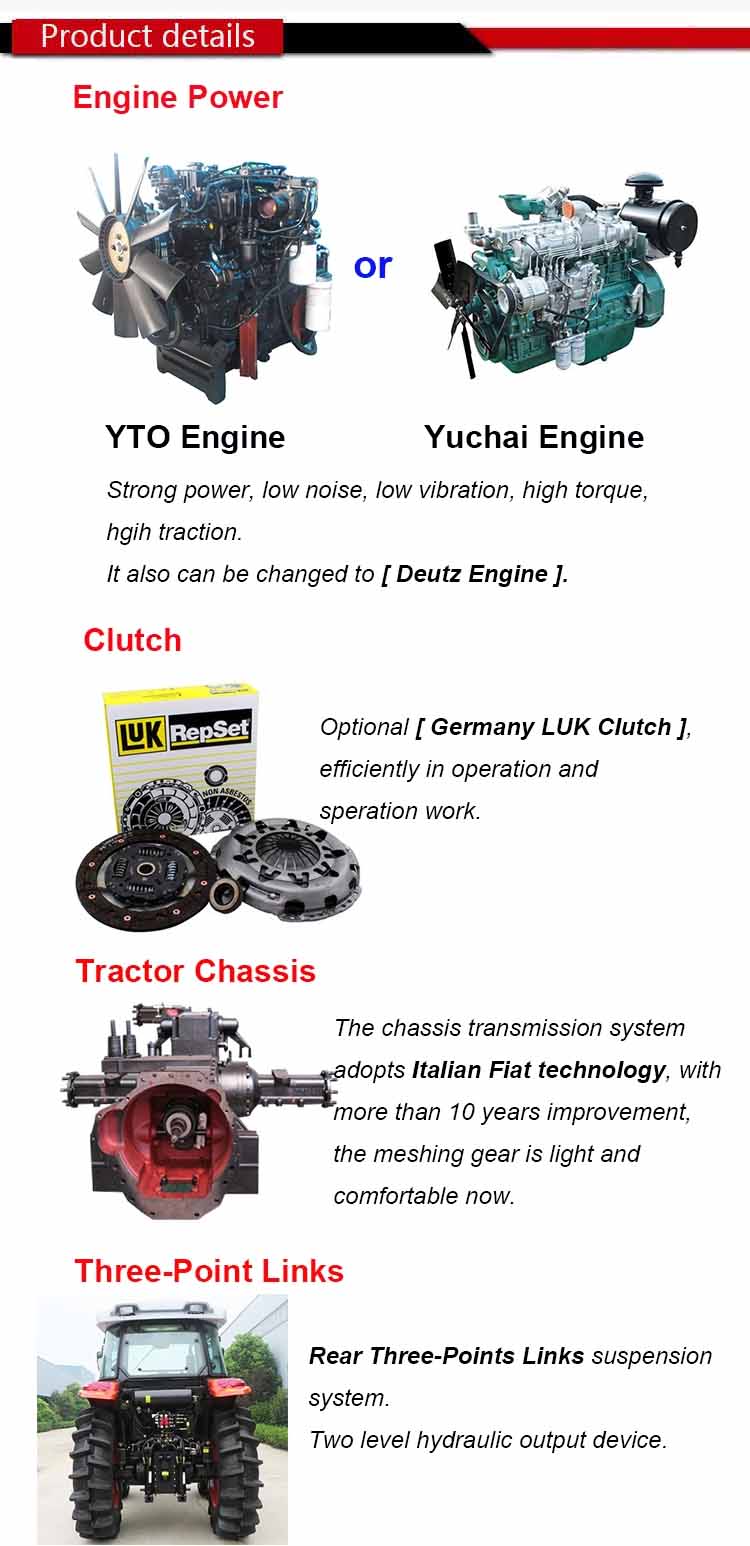

9 | Engine | Model | Four cylinder, vertical, wawter cooled, four stroke diesel engines | |
10 | Item No. | LR6B5-23-100 | ||
11 | Bore X Stroke | mm | 6-108X123 | |
12 | Rated HP | kw | 73.5 | |
13 | Rated Speed | r/min | 2400 | |
14 | Transmission System | Clutch Type | / | 12" dry double-action |
15 | Gearbox Type | / | 4 x (2+1) x 2 | |
16 | Steering and Braking System | Steering System Type | / | Independent, Hydraulic Steering |
17 | Braking System Type | / | Oil Immersed Brake | |
18 | Running System | Tyre Type | / | 11.2-24/16.9-34 |
19 | Working Device | Suspension System Type | / | Rear Three-Points Links |
20 | Hydraulic Output Device | / | Two Level | |
21 | The No. of PTO Shaft Splines | / | 6 Keys | |
22 | The PTO Shaft Speed | r/min | 540/1000 | |

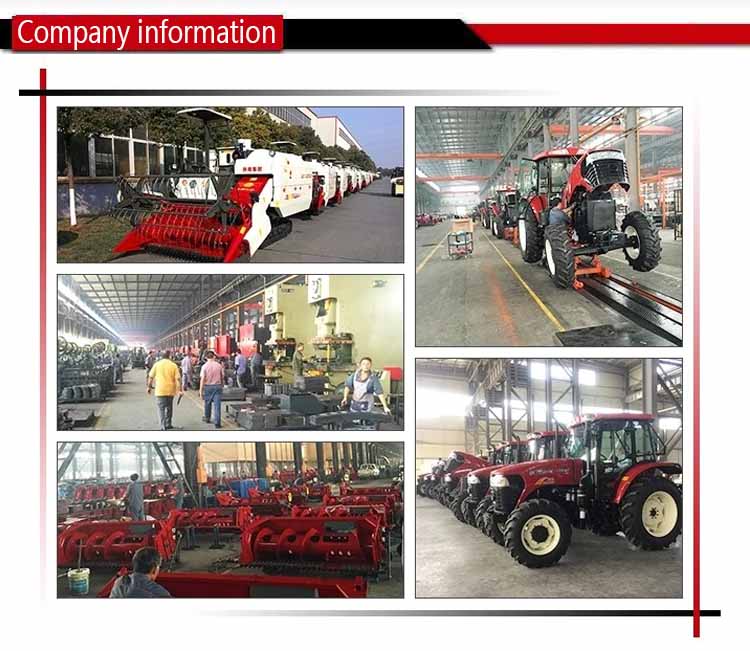

JiNing ChangLiuHang Group Work Win Co.,Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
Q1: How about your company?
A: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.
Q2: What is the delivery time?
A: 15-20 working days after payment.
Q3: What is loading port?
A:Usually is Qingdao (Chinese main ports).
Q4: What is the MOQ?
A: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.
