4WD China Tractors For Sale,160 hp Farm Tractor

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

Qingdao

10 /0

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Other

Quantity:

Send Enquiry Add To Cart
Product Details




JG1854 185hp Tractor Main features:


1. Adopt Deutz diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;

2. Double-function clutch, 13 inches, high transmission capacity, reliable, comfortable manipulation;

3. Gearbox using 4 × (3 +1) engaging sleeve gearshift , there are 12forward gears, 4 reverse gears, reasonable match between the gears, and have high efficiency;

4. Independent power take off device, smooth transmission, large capacity;

5. Using an independent circuit of hydraulic steering control system, manipulating flexible, reliable, and save energy;

6. Adopt hydrostaticdisc-type brakes, a large braking torque, the braking effect is good;

7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;

8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;

9. New streamlined appearance, generous, modern, fashion





ModelSD604
Type4WD Wheeled Type
(mm)Dimensions of TractorLength(With front ballast)3835
Width1620
Height(to the exhaust vent)2135
TreadFront Wheel1300
Rear Wheel1300
Axle Base1910
Min.Ground Clearance410
(kg) Structure weight1665
Ballast weight
(kg)
Front ballast112
Rear ballast100
Rated traction force (kg)850
EngineModel4105
TypeVertical,4-Cylinder,Water Cooled and 4-stroke
Rated Power(kw)44.11
Rated speed (r/min)2400
FuelDiesel
TyreFront Wheel6.50-16
Rear Wheel11.2-28
ClutchDual-stage clutch
Steeringpower steering
Transmission Type8F+2R or 8F+8R with shuttle gearshift
Suspension Type3-point links
PTOType and RevSemi-independent Type 540/1000
Spline SizeF35 Rectangle Spline with 6 teeth
Structure and specification are subject to change without notice.














* More than 20 years experiences in agricutural machine.
* Our tractors full passed ISO9001 International Quality Certification system and China 3C Quality system.
* Due to the compact structure,small overall size,less fuel consumption,and being easy to operation, our tractors are widely accepted by the customers in the world.

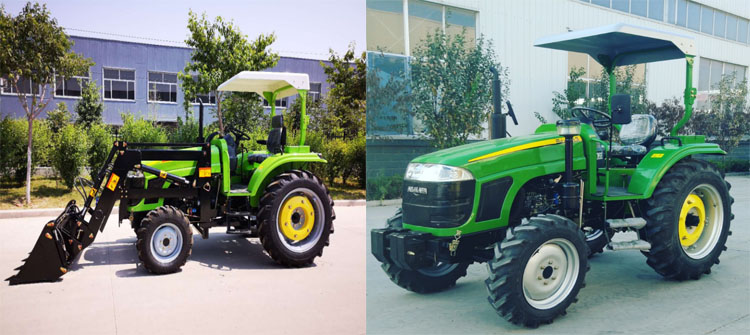

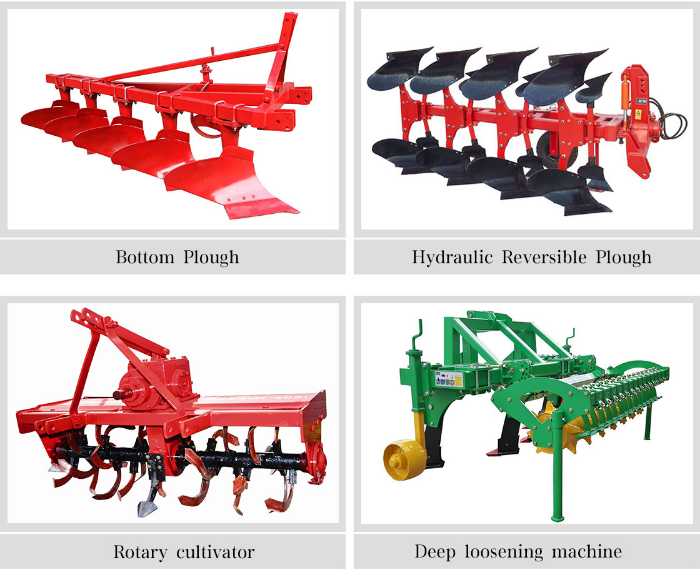

* They can be equiped with varied farm implements,such as front end loader,backhoe,slasher,wood chipper,snow grader,ect..
* Except the reasonable price,high quality goods,excellentservice is the basic of our business.
*The warranty of all our goods is 12 months.

9. New streamlined appearance, generous, modern, fashion
