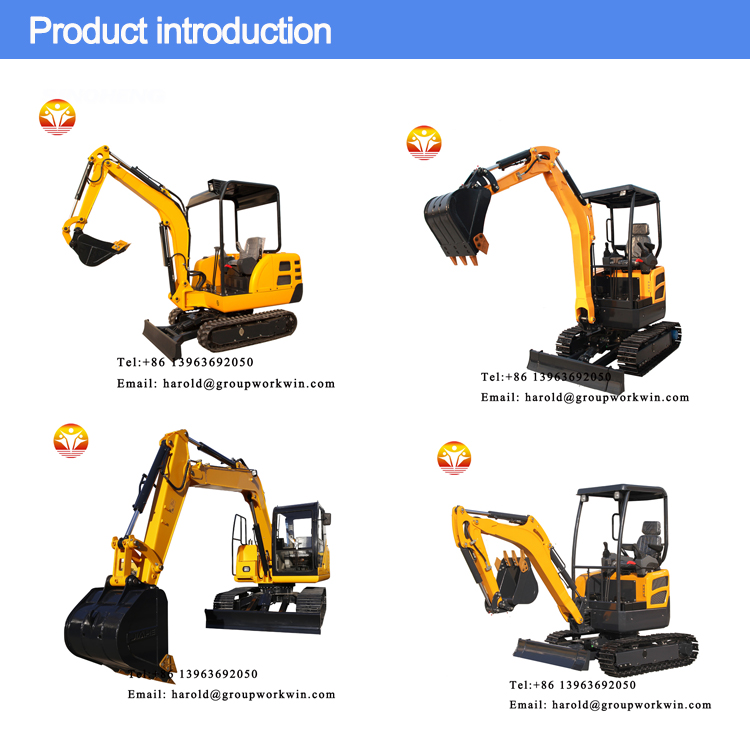

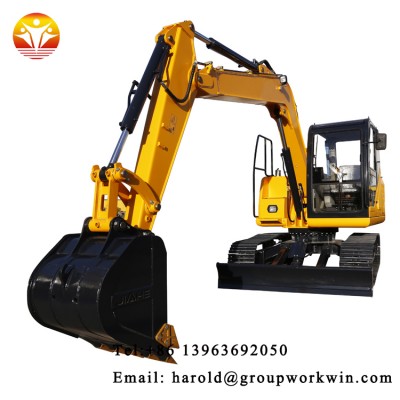

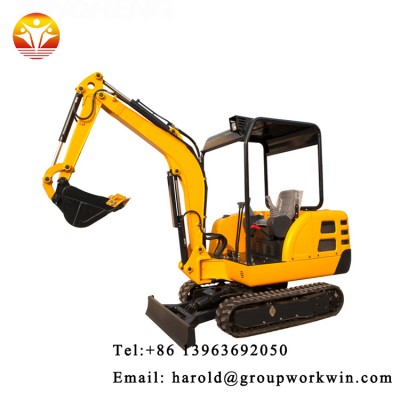

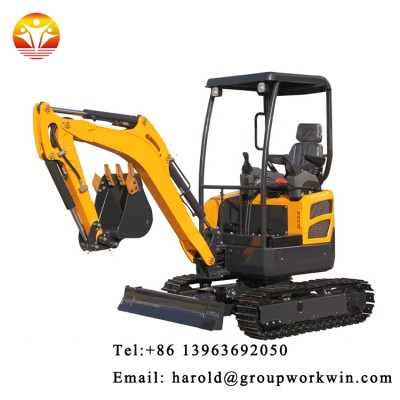

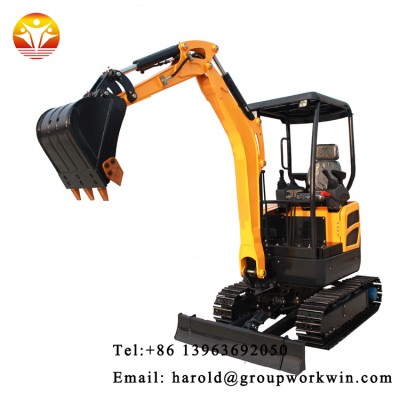

China made 3ton 4ton mini crawler excavator with CE
The driving mechanism transmits the power of the engine to the actuators such as the hydraulic motor and the hydraulic cylinder through the hydraulic pump, and promotes the action of the working device, thus completing various operations
Track | Rubber |
Digging bucket capacity | 0.08m³ |
Dimension | 4082*1200* 2128mm |
Total weight | 2200KG |
Wheel tread | 950mm |
Length of track | 1250MM |
Width of track | 230mm |
Platform ground clearance | 458MM |
Max. Digging height | 3714mm |
Max. Dumping height | 2488mm |
Max. Digging radius | 4023mm |
Max. Digging depth | 2150mm |
Max.travel speed | 2.2km/h |
Rotating speed | 11rpm |
Movable arm swinging Angle | 70/50° |
Ground pressure | 38kpa |
Hydraulic pump | Duplex gear pump(guide) |
Working pressure | 18MPA |
Flow | 12ml+3.5ml/min |
With the use of rotary drilling, broken hammer, loading bucket, gripping and other tools, machine utilization greatly improved
About the shipment, we use the iron frame for safety fixation, and use the container for shipping. If there are other transportation requirements, we can change it.
Linyi Feixian Group Work Win Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,Iran,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
