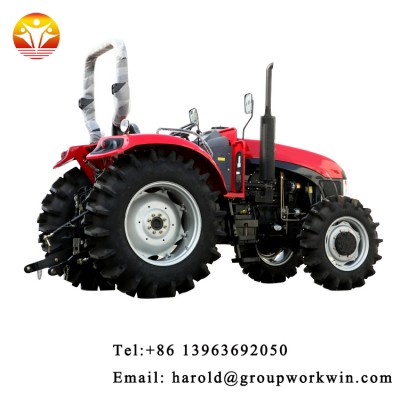

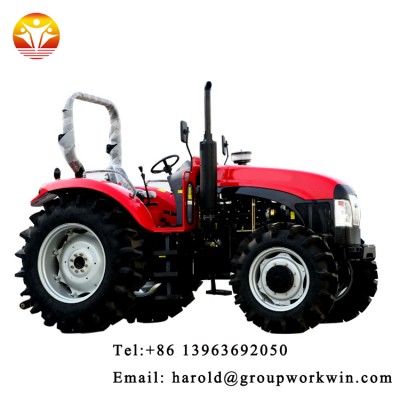

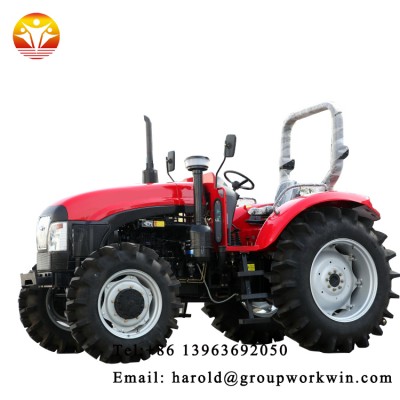

China Large Factory Manufacturer Small Agricultural Tractor for Sale
The tractor is designed for various agricultural operations of general purposes: general tillage and pre-sowing soil treatment, sowing in combination with wide-cut and combined machinery,harvesting consisting of high efficient harvest complexes,transport operations.
Specification Sheet | ||||
Engine
| Rated Power (HP/KW) | 130HP/95.6KW | ||
Rated Speed(r/min) | 2300 | |||
Engine Model | 6 cylinder, water-cooling, In-line, Direct Injection | |||
Drive Type | 4×4 | |||
Dimension | Structure Weight(KG) | 3800 | ||
Length×Width×Height(mm) | 4280×2085×2925 | |||
Min.ground clearance(mm) | 405 | |||
Wheel Base(mm) | 2195 | |||
Wheel Tread
| Front Wheel(mm) | 1610 | ||
Rear Wheel(mm) | 1620-2020(Basic Type 1620) | |||
Working System
| Tyre
| Front Tyre | 12.4-24 | |
Rear Tyre | 16.9-34 | |||
PTO
| Model&Size | φ35,6teeth (Optional: φ38,8teeth ) | ||
Speed(r/min) | 540/1000(Optional 540/760,760/850,760/1000) | |||
Clutch | Dual-acting Clutch | |||
Steering Type | Hydraulic Steering | |||
Gear Box | F16+R8 Shuttle shift | |||
Oil Tank(L) | 150 | |||
Suspension Type | Class II, Three-point Rear Linkage | |||
Rated Traction Force(KN) | ≥26 | |||
Rated Lifiting Force(KN) | ≥23 | |||
YTO 6 cylinder Water Cooled, 4-stroke diesel engine, low fuel consumption..F16+R8 shuttle gearshift, full hydraulic steering, double acting clutch。 Double oil cylinders strong pressure lifting system, more reliable performance. Reinforced chassis, Fortified gearbox, much more efficiency. Adopt the large fuel tank 150.With large tires F12.4-24/R16.9-34
About the shipment, we use the iron frame for safety fixation, and use the container for shipping. If there are other transportation requirements, we can change it.
Linyi Feixian Group Work Win Co., Ltd.. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
