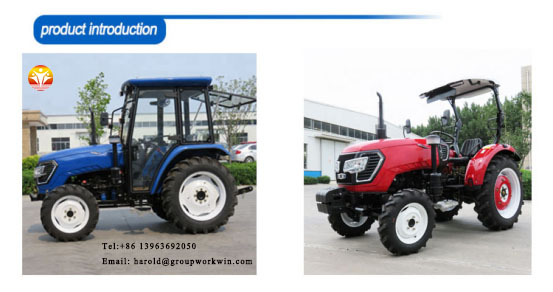

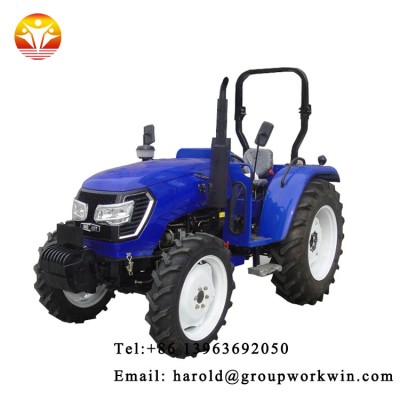

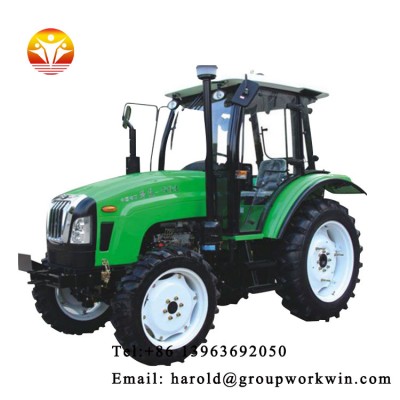

Small Crawler Tractorsmall tractor
Small tractors for agriculture have become the main power of agricultural operations and rural transport, small, flexible, low price, applicable to a wide range of people welcome
Model | WM650 | |||
Dimensions | Length×Width×Height(mm) | 3200×1500×1880 | ||
Wheel Tread(mm) | Front Wheel(mm) | 1065 | ||
Rear Wheel(mm) | 1200 | |||
Min.Ground Clearance(mm) | 265(4WD) 330(2WD) | |||
Dry Mass | Complete tractor weight(KG) | 1330(4WD) 1100(2WD) | ||
Engine | Trade Mark or Brand | LAIDONG | ||
Engine Model | Vertical Water Cooled 3-stroke | |||
Directly Injection | ||||
Number of Cylinder | 3 | |||
Cooling System Type | Water Cooled | |||
Rated Power(kw) | 18.4KW | |||
Fuel Tank | Volume(L) | 41.3 | ||
Transmission System | Clutch | Single,Dry,Single Stage Type | ||
Gear Box | F8+R2 | |||
Differential | Closed 4-planetary Gears | |||
Differential Lock | Mechanical Sliding Sleeve | |||
Braking System | Mechanical,dry type | |||
Running System | Tyre Model | F/R(2WD) | 5.5—16/9.5—24 | |
F/R(4WD) | 6.0—16/9.5—24 | |||
Steering System | Mechanical for 2wd tractor, and Hydraulic steering for 4wd tractor | |||
Working Device | Hydraulic System Type | Partial seperated lifter | ||
Linkage Type | I Rear Mount 3-point Linkage | |||
PTO(Standard) | Φ35×6 | |||
PTO Speed(r/min) | 720 | |||
Drawbar Type | Fixed Drawbar |
The gear configurations of F8+R2 makes that the velocity distribution is reasonable to meet different operating needs.Optional single/double-acting clutches for different needs and operation;special ceramic material for friction plates with high reliable as well as low use and maintenance cost.Powered by 4-cylinders direct injection Laidong/Jiangdong engine,energy-saving,environmental protection,good stability and more advanced technology;(it powered from 25-40hp which can provide power up to
40hp and )meet the Emission Standard of E3A and EPA Tire 4.

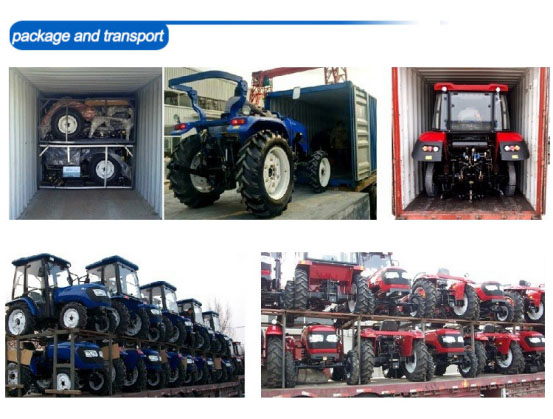

About the shipment, we use the iron frame for safety fixation, and use the container for shipping. If there are other transportation requirements, we can change it.

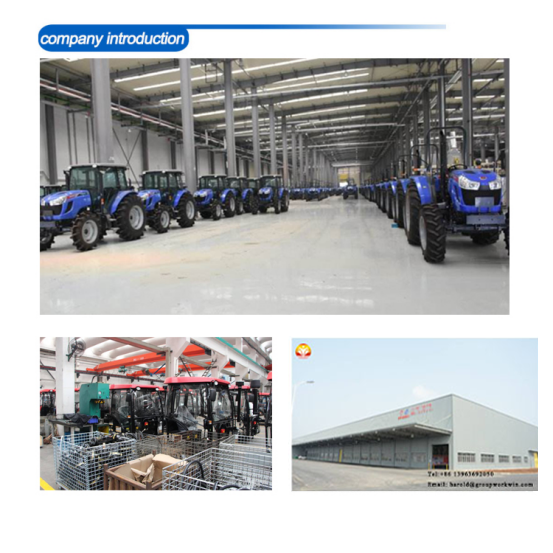

Linyi Feixian Group Work Win Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
1.When do you ship after payment?
Within 10 to 20 working days after delivery.
2.when do contact you?
our sales person is 24*7 online for your service.
3.What are your discount items?
We will give you the biggest discount.
4.What are your advantages?
Advanced equipment,good price;professional association authentication;scientific and strict production management;superior and high quality service.
