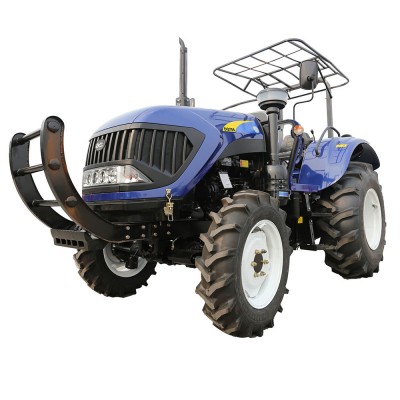

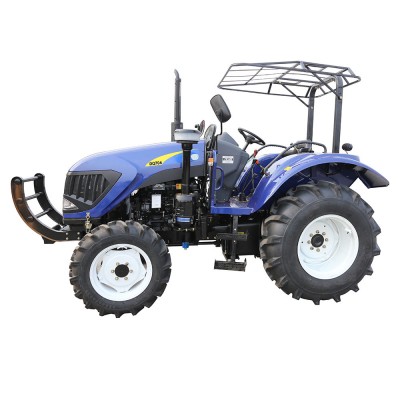

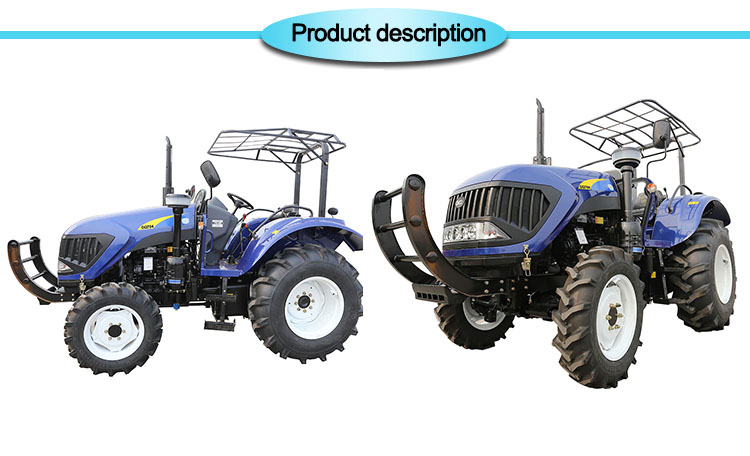

70hp 4wd shuttle gear JpV dual stage clutch plush ac cabin disc brake 12 cylinder engine garden tractor
Tractor compact structure, good starting performance, flexible and convenient operation.Engine torque goes up and noise goes down.Can meet all kinds of complex agronomic requirements.
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumaticparts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor ,which can directly inlinewith filling machine .
| Product Name | DQ704 garden tractor | ||
| Engine | Technical parameter | ||
| Series | YT4B4-T39 | Overal size L*W*H | 4110*1929*2668 |
| Type | In-line,diret injection, water cooling, four stroke | Structure weight without cabin(kg) | 2960 |
| Rated Powder(hp) | 70 | Structure weight with cabin(kg) | 2870 |
| Displacement (L) | 4.76 | Wheel base(mm) | 2250 |
| Rated speed (rpm) | 2300 | Wheel tread-front(mm) | 1400/1500/ 1600/1700 |
Lowest fuel consumption (g/kg*h) | ≤242 | Wheel tread-rear(mm) |
1330/1430/ 1530/1630/1730 |
| Cylinder Bore Stroke | 4x108x130 | Tyre size (front) | 8.3-24 |
| Fueltank capacity (L) | 100 | Tyre size (rear) | 14.9-30 |
| Transmission system | Minium ground clearance | 350 | |
| Clutch | Dry,Dual stage cluth | Cabin | Option |
| Number of gears | 8F+2R/16F+4R | Air conditioner | Option |
| PTO speed(rpm) | 540/1000 | Rops | Standard |
| Speed range(km/h) | 0.68-31.49 | OECD rops | without |
| Hydraulic System | Paddy tyre | Option | |
| Hydraulic output vave | 2 pair | Turf tyre | without |
| Hydraulic out flow(L/min) | 35 | Others | |
| Three point linkage | Rear, Category II | Color | Customized |
| steering type | Hydraulic steering | Cup holder | Option |
Lifting capacity at lift point(kg) | 1300 | Luxury Seat with belt | <span style="box-sizing: content-box; margin: 0px; padding: 0px; border: 0px; font-style: inherit; font-variant: inherit; font-weight: inherit; font-stretch: inherit; line-height: 21px; vertical-align: baseline; font-family: "andale mono" |
