hot sale 20hp power tiller walking tractor

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

Qingdao

3000 /Month

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Other

Quantity:

Send Enquiry Add To Cart
Product Details

hot sale 20hp power tiller walking tractor

Product Description.jpg

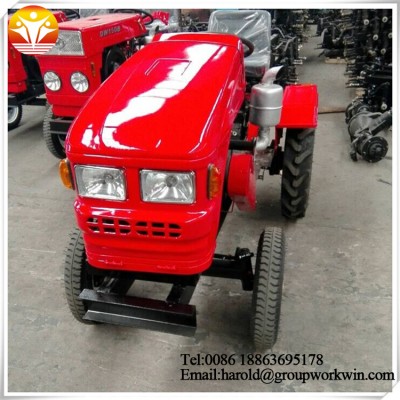

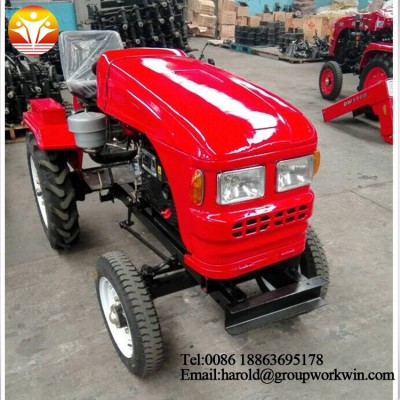

The walking tractor is a small tractor. It is a kind of transportation tool and agricultural machinery popular in China's towns and villages. It is powered by diesel engines. Its small size, flexibility and strong power make it very popular among farmers. The structure is simple, the power is small, and it is suitable for small cultivated land. The driver controls the operating mechanism by pulling the armrest frame, pulling or driving the supporting agricultural implements.

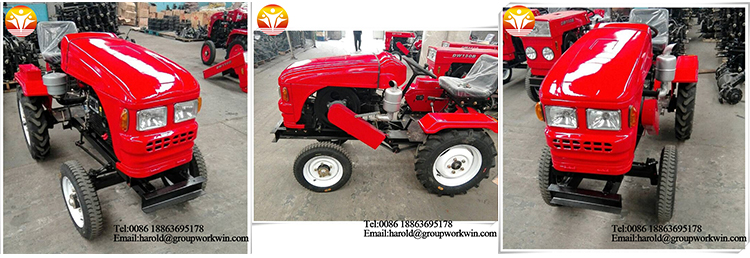

walking tractor7.jpg

Product details.jpg

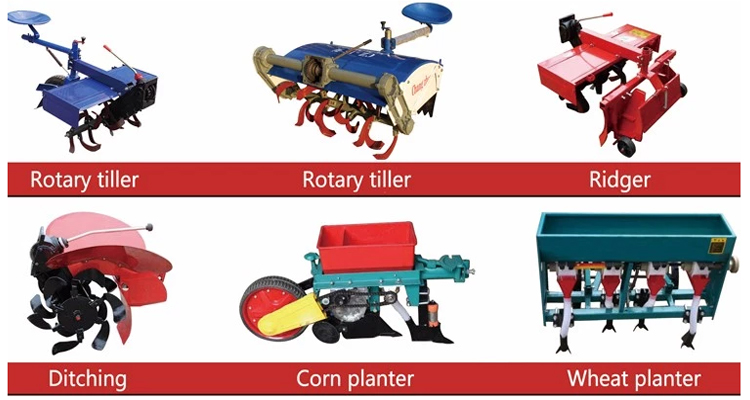

The walking tractor has the advantages of light weight, compact size, flexible operation, strong adaptability, etc. It can be equipped with different agricultural implements, and can be used for various field operations such as ploughing, rotary tilling, leveling, and soil breaking, and is equipped with a trailer. Short-distance transportation is possible. In field operations, accidents are generally less likely to occur due to slower speeds, while in road transport, special attention should be paid to safety issues in both steering and connection.

walking tractor8.jpg

Product parameters.jpg

Power: 10hp/12hp/15hp/18hp/20hp/24hp

Chassis Information

Model

GN-20

Overall Dimensions:(L×W×H)

2950×980×1240mm

Wheel tread

570,630,690,750,810mm

Tyres

Front 6.00-12

Rear 4.00-8

Skid Wheels

2 Nos. 40Kg

Ground clearance

210mm

Working weight (with rotary tiller)

480 kg

Speed (km/hr)

Forward 1.39, 2.47, 4.15, 5.14, 9.12, 15.30

Reverse 1.10, 4.10

Rotary tiller

Model:1GL-60

Whole weight: 118 kg

Width 600 mm

Transmission type: chain drive

Turning Speed: Low:199, High:250

Number of blades: 18 pieces

Packaging transportation of products.jpg

walking tractor15.jpg

Packaging Details:Iron frame, In container or as your demans for 18hp power tiller walking tractor

Port:Qingdao

Lead Time :20 days after received your advance payment

company exhibition.jpg


Heze Garden Group Work Win Supply Chain Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders. We have a multilingual team, and many big branch factories. A regional market presence including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc. Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.



After sales service.jpg



Q1.How about the working life of your walking tractor?

A: Accordingly to the feedbacks from our customers, our walking tractor can be used for about 3 to 5 years. The quality of our tiller is very good, so do not worry.

Q2.How many years warranty your company provide?

A: We provide our customers one year warranty, during warranty period, if there is any parts of the machine went wrong, we will send free ones to you immediately and will guide you how to fix it.

Q3.If the wearing part break down, what to do?

A: We normally send many pieces wearing part together with your order.

Q4. Is it difficult to install the machine?

A: The main parts of the machine will be installed by our enginner, customers only need to install the wheel and accessories like rotary blade.?

Q5.How to use this machine?

A: We will send video and operating manual to you and train you how to use and maintain the machine.

Q6.What is your MOQ?

A: One set is available is you are final user or want to test the machine as an sample.
