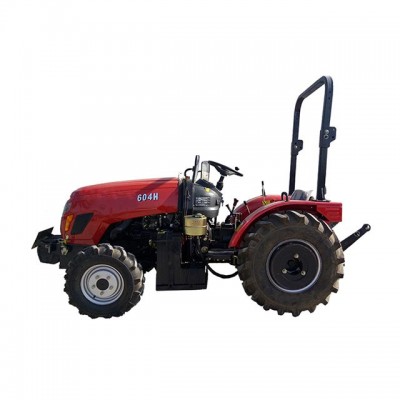

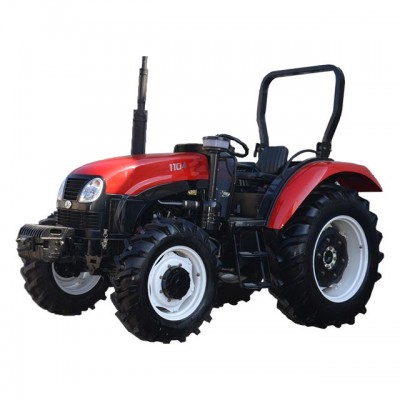

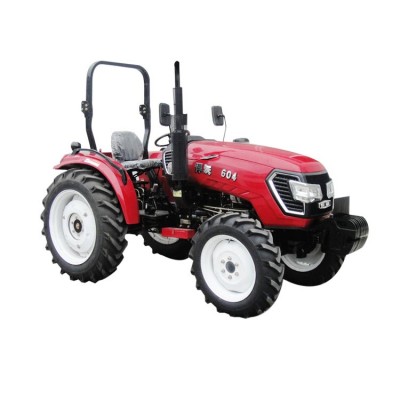

Cheap Mini Small Farm Tractor For Big Sale With High Quality

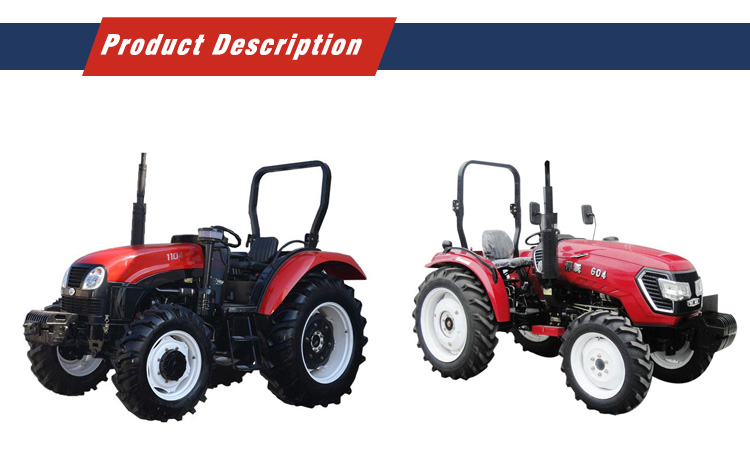

The Mini tractor is 40hp 4 wheel drive. It is suitable for gardening, greenhouse,lawn and family work. It is assembled with good diesel engine,double stage clutch,
dual-way hydraulic output and hydraulic steering,which is most popular in international market.

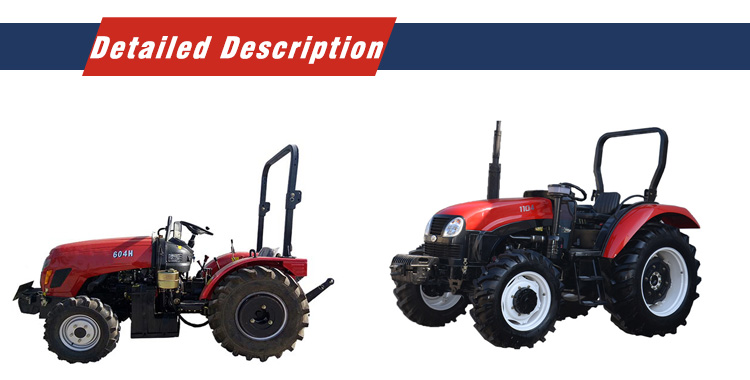

1. YTO diesel engine: good reliability, large reserves of torque, low fuel consumption, high economic efficiency.
2. Double-function clutch: operate independently, high transmission capacity,comfortable operation.
3. Gearbox: 4 × (4+2) engaging sleeve, shuttle-type gearshift,16 forward gears and 8reverse gears, reasonable match between the gears.
4. Steering type: Full hydraulic front wheels steering: independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
5. Hydrostatic disc-type brakes: a large braking torque, the braking effect is good;
6. High pressure type lifting device:reliable, easy maintenance, multi-hydraulic output can be optioned;
Technical Parameters of the Tractor | |||
Type | 4WD Wheeled Type | ||
(mm)Dimensions of Tractor | Length (to front ballast) | 3835 | |
Width | 1620 | ||
Height (to the exhaust vent) | 2220 | ||
Tread | Front Wheel | 1280 | |
Rear Wheel | 1300 Fixed or 1200~1500 Adjusted | ||
Axle Base | 2030 | ||
Min.Ground Clearance | 325 | ||
Structure weight (kg) | 1665 | ||
Ballast weight | Front ballast | 140 | |
(kg) | Rear ballast | 200 | |
Rated traction force (kg) | 1100 | ||
Engine | Model | 3105/490 | |
Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | ||
Rated Power(kw) | 29.4 | ||
Rated speed (r/min) | 2400 | ||
Fuel | Diesel |

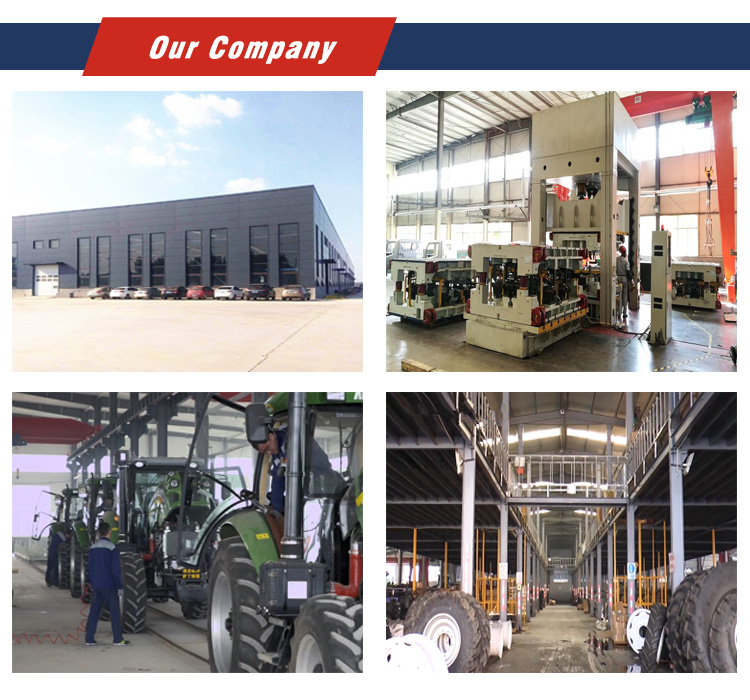

Qingdao Time Work Win Co., Ltd. is a leading integrated supply chain solution manufacturer and supplier. We provide the best agricultural products for our orders.
We have a multilingual team and many large branches. Regional markets - including Southeast Asia, Indonesia, Russia, Spain, Chile, Brazil, Australia, etc.
Group Work Win is committed to building long-term relationships by providing ongoing and reactive support to our customers. Our goal is to provide better products and after-sales service.
1). How to order?
-After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be delivered within 5 days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance
-If you still don't understand, please do not hestitate to ask me
2). Related products?-We have disc moer, which can cut grass, alfalfa, corn stalk, into lines.-Hay rake tedder to ted and rake your materials.-Round or square baler to bale these materials into bales.-Hay wrapper can wrap your bales for long time storage.
3). What size of tractor suitable for this baler?-If your tractor has above 20-50HP (for RXYK-0850 and RXYK-0870), RXYK-1200 need above 45HP, then it will operate our compact hay balers.-If your tractor has independent or live PTO you can operate our compact hay balers.
4). About the bales? -Bale dimension: (RXYK-0850) 50*70cm, (RXYK-0870) 61*70cm, (RXYK-1200) 120*150cm -Bale weight: (RXYK-0850) 29-35kg, (RXYK-0870) 38-45kg, (RXYK-1200) 150-300kg, Weight is adjustable bacause density is adjustable. -Efficiency: 850/870: 80-120 bales per hour, RXYK-1200 12-30 bales per hour, this should be according to the density of the bale. -Density of the bales can be adjusted, we suggest to container no more than 20% moisture. -To store the small silage bales, we recommed a hay wrapper: RXHW-0810 model.
