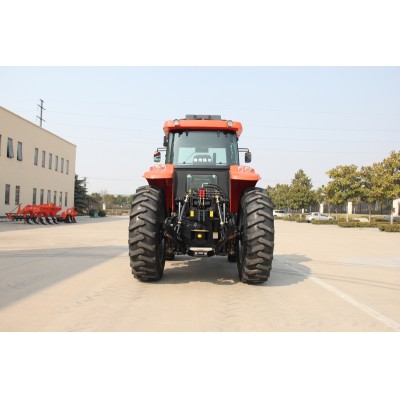

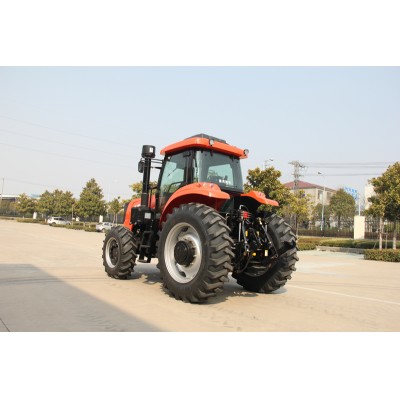

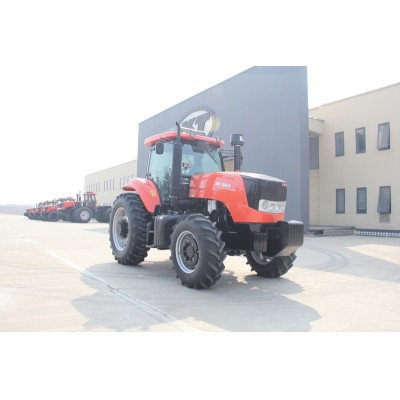

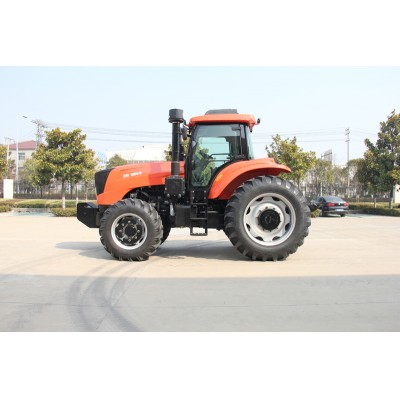

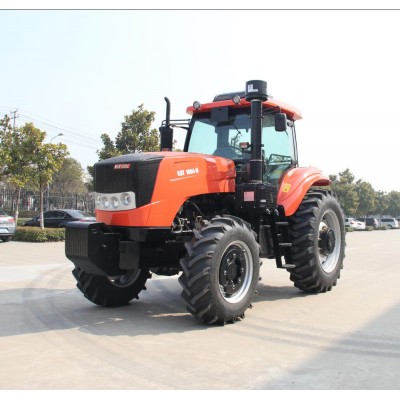

KAT1804 tractor 180hp with WEICHAI engine

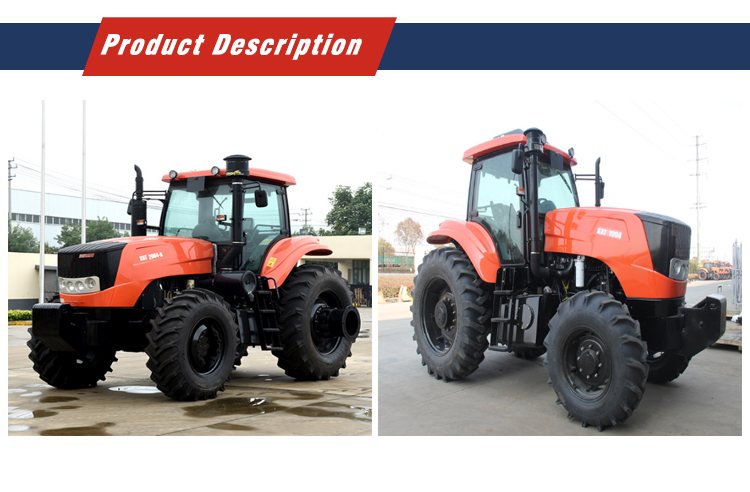

Weichai six cylinder engine, turbocharger, inter-cooling, 12 hours rated power: 132.5kw, fully enclosed drive cabin, air heater, air conditioner, 16+4 gears, synchronizer shift, unit frame chassis, driving system with modularized structure, famous international brand front axle, construction machinery rear axle.
Weichai six cylinder engine, turbocharger, inter-cooling, 12 hours rated power: 132.5kw, fully enclosed drive cabin, air heater, air conditioner, 16+4 gears, synchronizer shift, unit frame chassis, driving system with modularized structure, famous international brand front axle, construction machinery rear axle, single rear tire, caliper disc brake, replaceable PTO shaft, PTO shaft rotation speed: 540/1000r/min, fully hydraulic front wheel steering, front wheel counter weight: 100kgs, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category III.
Model | KAT1804-B | |||
Engine | Rated Power/speed | kW/r/min | 132.5(180)/2200 | |
Drive Type | / | 4×4 | ||
Dimension(Length/Width/Height) | mm | 5470/2385(double rear tyre:3530)/3070(inclu. A/C 3250) | ||
Wheel Base | mm | 2688 | ||
Track(Front wheel) | mm | 1698-2122 | ||
Track(Rear wheel) | mm | 1760-2384 | ||
Min. Ground Clearance | mm | 460 | ||
Min. operation weight | kg | 6500 | ||
Front counter weight | kg | 500 | ||
Rated Traction Force | kN | 40 | ||
No. of gears | 16F+4R | |||
Forward Gear | Speed | km/h | 3-30 | |
Reverse Gear | Speed | km/h | 5-25 | |
Tyre Model | Front Tires | / | 14.9-26 | |
Rear Tires | / | 18.4-38 | ||
Power-output shaft Type | / | Rear position, independent | ||
power-output shaft Rated Speed | r/min | 540/1000 | ||
Max. lifting force | kN | 40 | ||
Selling Units:
Single item
Single package size:
547X238X307 cm
Single gross weight:
6500.0 kg
Package Type:
Nude packing for container loading
Lead Time :
30

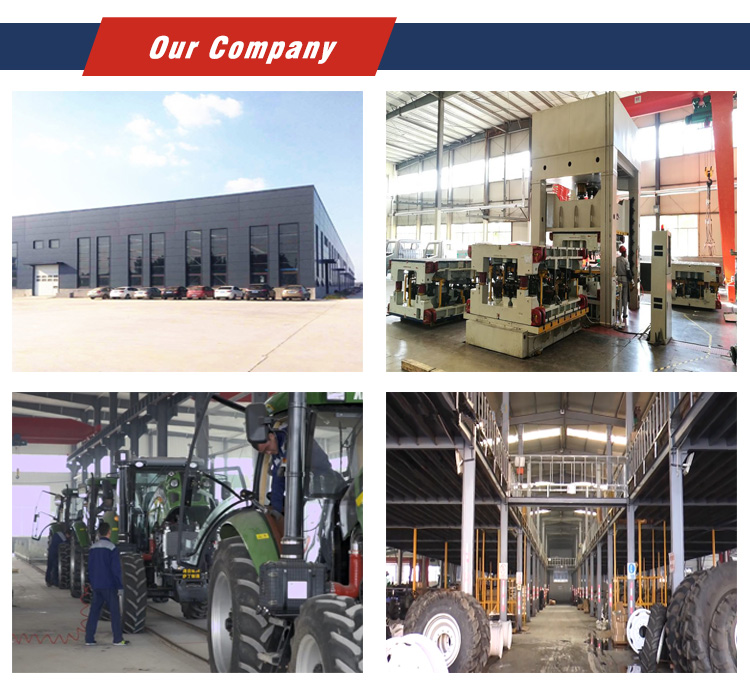

Qingdao Time Work Win Co., Ltd. is a leading integrated supply chain solution manufacturer and supplier. We provide the best agricultural products for our orders.
We have a multilingual team and many large branches. Regional markets - including Southeast Asia, Indonesia, Russia, Spain, Chile, Brazil, Australia, etc.
Group Work Win is committed to building long-term relationships by providing ongoing and reactive support to our customers. Our goal is to provide better products and after-sales service.
FAQ
Q. I'm a complete tractor novice, never driven one in my life - can you help me?
A. Absolutely! Your new tractor comes with a training DVD and instruction manual. If you still need assistance, we're only a phone call away - we're here to help.
Q: Why are HuaxiaTractors such awesome value for money?
A: Huaxia Tractors are awesome value because we are manufacturer. We have no commercial lease to pay. Tractors and implements are stored in a rural shed, so we pass the savings directly on to you.
Q: Do implements require any assembly?
A: Yes. Most implements have some assembly required, they're typically partially assembled for transportation. Tightening of all bolts is required.
Q: What lubrication do implements require?
A: Unless otherwise stated, all implements with gearboxes, such as slashers, post hole borers and rotary tillers, are shipped dry and require the addition of gear oil.
Q: Is the three point linkage limited to just two positions? (Up or down).
A: No. The three point linkage can be stopped at any position.
Q: What type of three-point linkage does the tractor have?
A: The tractor has a Category 1 three-point linkage
Q: How much weight can the three point linkage lift?
A: This depends on which model tractor you purchase. Please review the specifications page.
Q: How much fuel does the tractor use?
A: Approximately 5 - 7 litres per hour, depending on engine capacity, speed, load, etc.
Please review the specifications page for more information.
Q: What speed and power does the PTO deliver?
A: The PTO has dual speeds: 540 / 1000 RPM.
Q: What type of brakes does the tractor have?
A: The Fumetsu has Non-Hydraulic Drum Brakes on the rear wheels.
