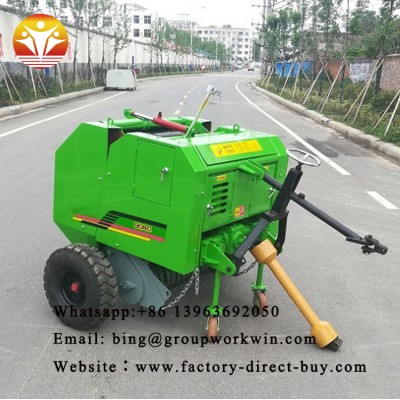

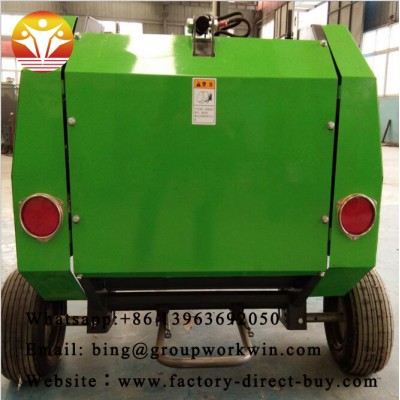

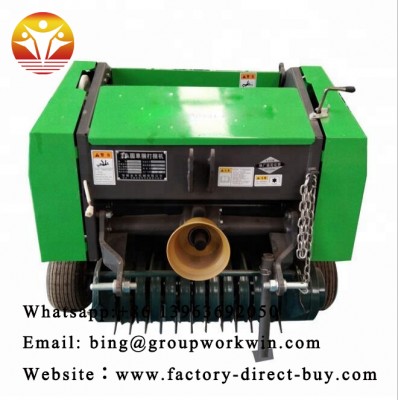

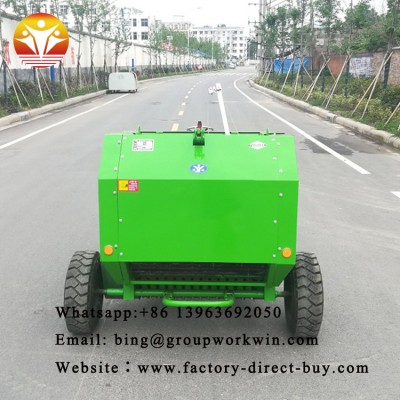

China round bundling machine for straw stalk pick-up baler
The straw bundling rope coiling machine/straw bundling machine is widely used in agriculture and animal husbandry. It can collect and bundle dry and green grass, straw, wheat stalk, corn stalk, wheat/ rice straw, grass, corn straw, pasture straw bale, etc. After baled by the machine, the bundle is very convenient for transportation, reserve and deep processing, and it matches with envelop machine to achieve the enveloping of ensile. So, the hay straw baler machine is very welcomed by domestic and overseas farmers.
1.When the machine is going along with the tractor, the hay is picked into rotary platening chamber and rotating bigger and bigger, then get into very tight round bale.When the density of the bale is Ok , the alarming system will start to sound, driver should stop forwarding, push the threading clutch.
2. When find the speed of threading is faster, loose clutch, keep the Power conveyor driven shaft working to start thread. Driver should pull the hydraulic controlling stick to change the direction of the hydraulic valve, then the cylinder will work and throw the bale out.
3. After throwing the bale out,correct the hydraulic valve, open rear rack to forwarding again for the second cycle.
1. This straw bundling rope coiling machine with advanced design and structure, processing high quality round bales.
2. It is consist of main machine, pickup part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 15-90 HP tractor by PTO shaft.
3. The whole working program is successive, accurate and reliable, the bundled round grass bales compact outside and loose inside and has good air permeability.-
4. The machine is suitable for baling of hay, grass, wheat, silage, alfalfa and other materials such as straw etc.
Specifications | ||
Model | RXYK-0850 | RXYK-0870 |
Bale size: dia.*width | φ50×70cm | φ61×70cm |
Dimension (L*W*H) | 115*130*120cm | 130*130*135cm |
Weight | 425kg | 465kg |
Pickup width | 800mm | 800mm |
Efficiency | 3-6km/hour | 3-6km/hour |
Capacity (bales per hour) | 80-120 bales/hour | 80-100 bales/hour |
Tire | 4.0-8.0 or 16x6.5-8-4PR | 4.0-8.0 or 16x6.5-8-4PR |
Match power | 15-90hp tractor | 15-90hp tractor |
PTO speed | 540 rpm | 540 rpm |
Safety alarm signal | have | |
Light signal | have | |
Auto twine binding system | have | |
Hydraulic ejection system | have | |
Certificate | CE EPA ISO | |
Packaging Details：ron crate with film covering. 850: 20PCS/20FT, 40PCS/40FT. 870: 16PCS/20FT, 36PCS/40FT.
Port：Qingdao
Lead Time :
Quantity(Sets) | 1 - 10 | >10 |
Est. Time(day) | 5 | To be negotiated |
Heze Garden Group Work Win Supply Chain Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders. We have a multilingual team, and many big branch factories. A regional market presence including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc. Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
A:what's the MOQ of hay baler?
Q:one set is possible.
A:what's the warranty?
Q:the warranty is one year.technical support is whole life.
A:what's the wearing parts?
Q:there are some tines and other small parts with balers together free.
other parts are not easy to be damaged.
usually no need to buy wearing parts.
A:how to ship?
Q:usually we will arrange shipping for you and send balers to your port.when balers arrive,shipping company will call you.then clear customs and pick up balers
A:Is CO,FORM A,FORM E certification possible?
Q:yes,all these certification are possible.
