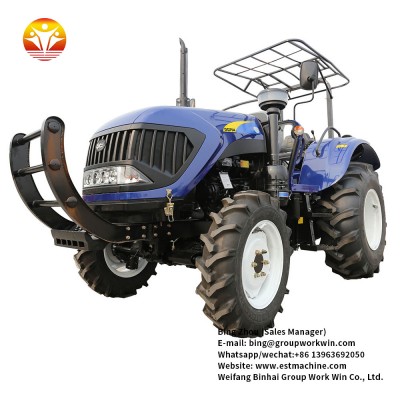

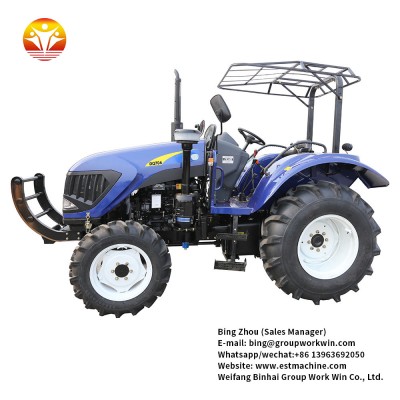

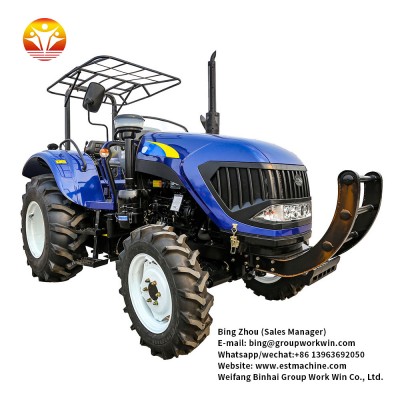

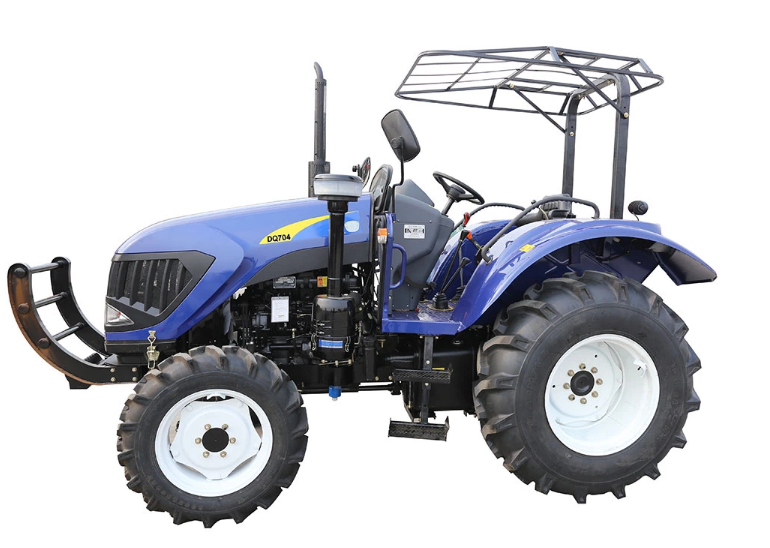

| Product Name | DQ704 garden tractor | ||

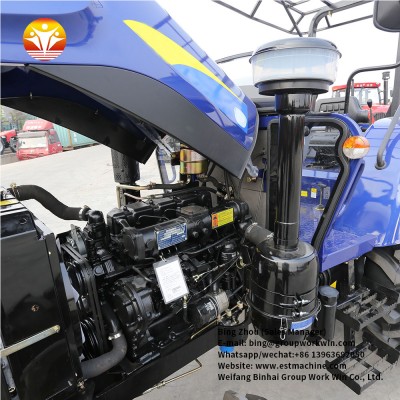

| Engine | Technical parameter | ||
| Series | YT4B4-T39 | Overal size L*W*H | 4110*1929*2668 |
| Type | In-line,diret injection, water cooling, four stroke | Structure weight without cabin(kg) | 2960 |
| Rated Powder(hp) | 70 | Structure weight with cabin(kg) | 2870 |
| Displacement (L) | 4.76 | Wheel base(mm) | 2250 |
| Rated speed (rpm) | 2300 | Wheel tread-front(mm) | 1400/1500/ 1600/1700 |
Lowest fuel consumption (g/kg*h) | ≤242 | Wheel tread-rear(mm) |
1330/1430/ 1530/1630/1730 |
| Cylinder Bore Stroke | 4x108x130 | Tyre size (front) | 8.3-24 |
| Fueltank capacity (L) | 100 | Tyre size (rear) | 14.9-30 |
| Transmission system | Minium ground clearance | 350 | |
| Clutch | Dry,Dual stage cluth | Cabin | Option |
| Number of gears | 8F+2R/16F+4R | Air conditioner | Option |
| PTO speed(rpm) | 540/1000 | Rops | Standard |
| Speed range(km/h) | 0.68-31.49 | OECD rops | without |
| Hydraulic System | Paddy tyre | Option | |
| Hydraulic output vave | 2 pair | Turf tyre | without |
| Hydraulic out flow(L/min) | 35 | Others | |

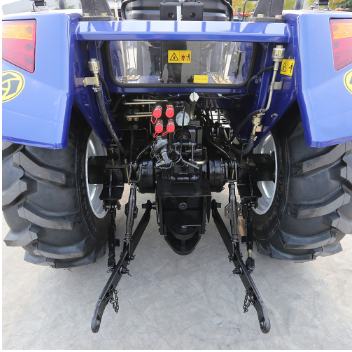

| Three point linkage | Rear, Category II | Color | Customized |
| steering type | Hydraulic steering | Cup holder | Option |
Lifting capacity at lift point(kg) | 1300 | Luxury Seat with belt | option |
Selling Units:Single item
Single package size: 411X192X266 cm
Single gross weight:2960.0 kg
1.Are you tractor supplier or manufacturer?
We are tractor manufacturer. We can provide the complete tractor and spare parts with favorite price, because we are the source.
2.Can you supply tractor farm implements?
We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.
3.what are your products?
Our products contain walking 10-18 hp, farm 4 wheel tractor 15-220 hp ,harvest and matched agricultural implements.

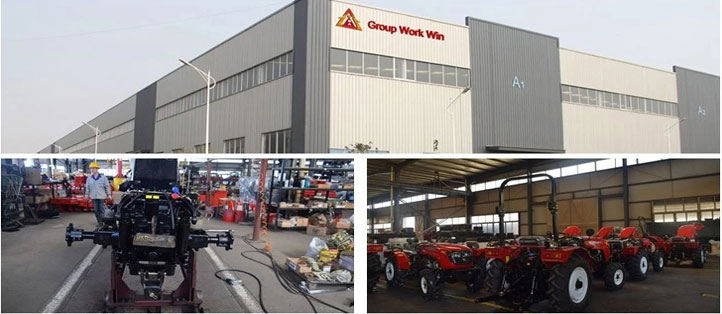

4.where is your factory?
Industrial garden of Weishi County,Henan Province,China.
5.What's your payment method?
Support L/C,D/A,D/P,T/T,and other secure payment.

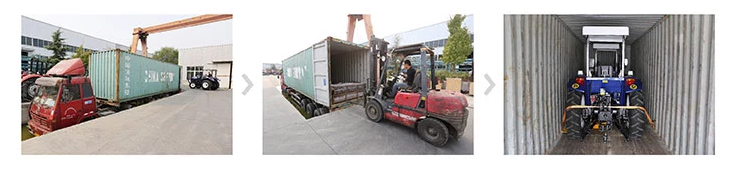

6.When do you ship after payment?
Within 10 to 20 working days after delivery.
