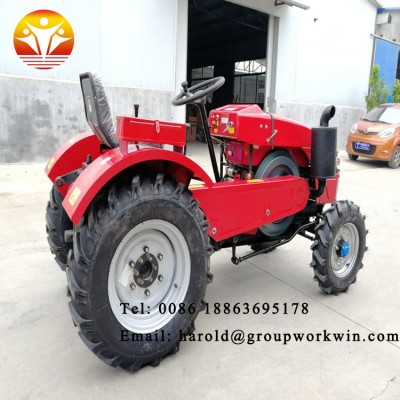

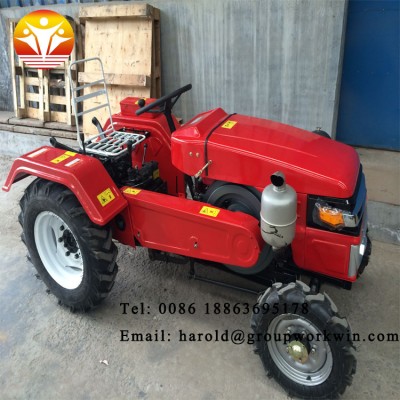

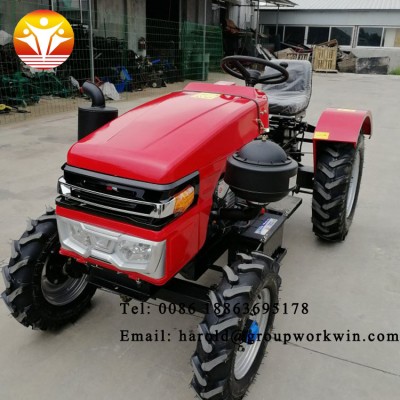

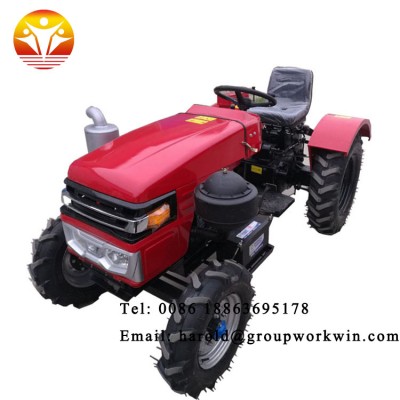

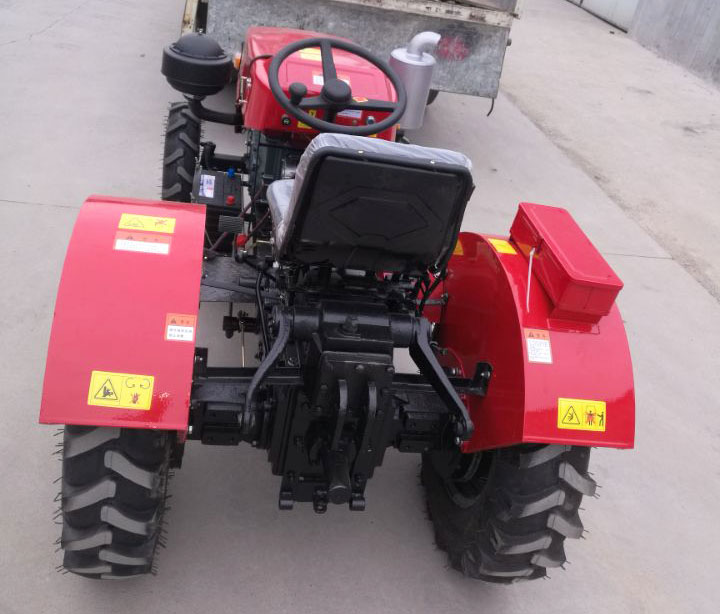

small compact 25hp 4WD diesel engine mini tractor 4wd utility vehicle
Description
1.Adopt Xinchai diesel engine, good reliability, large reserve of torque, low fuel consumption, high economic efficiency;
2.Double-function cluth, 10 inches, high transimission capacity, reliable, comfortable manipulation;
3.Gearbox using 4×3(1+1) engaging sleeve, shuttle-type gearshift, there are 12 forwards gears, 12 reserves gears, reasonable match between the gears, and have high efficiency;
4.Independent power take off device, smooth transmission, large capacity, speed(540/760, 540/1000 r/mim) for selection to meet the different operation requirements;
5.Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, realiable and save energy;
6.Adopt hrdrostatic disc-type brakes, a large braking torque, the braking effect is good;
7.Adopt high pressure tyoe lifting device, realiable, easy maintenance, multi-hydraulic output can be optioned;
8.Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9.New streamlined appearance, generous, modern, fashion;
10.Control levers can be mounted at side as optional, more convenient and comfortable.
Specification
| Tractor Model | LT404 | |
| Drive Type | 4×4 | |
| Overall Dimension(mm) | Length | 3770 |
| Width | 1620 | |
| Height(to air vent) | 2130 | |
| Wheel Base(mm) | Front Wheel Thread | 1265 |
| Rear Wheel Thread | 1200-1500(commonly usde 1300) | |
| Min. Ground Clearance(mm) | 315 | |
| Min. Operating Weight(kg) | 2081 | |
| Engine | Model | C490BT-8 |
| Rated Power(kw) | 30.9 | |
| Rated Speed(r/min) | 2400 | |
| Tires Specification | Front Tire | 8.3-20 |
| Rear Tire | 12.4-28 | |
| Max.Lifting Force(kn) | 7 | |
| Max. Traction Force(kn) | 9.7 | |
Packing & Delivery
inron frame or as customer's requests
