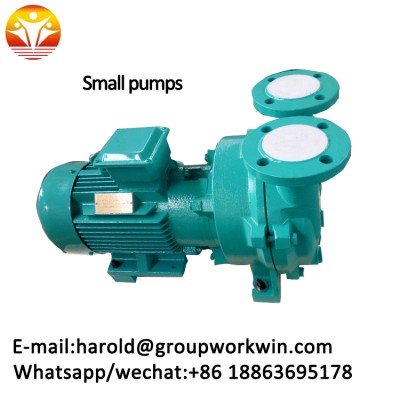

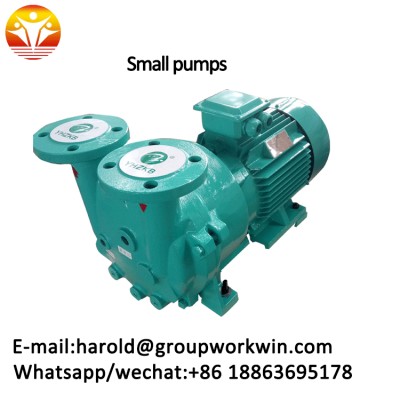

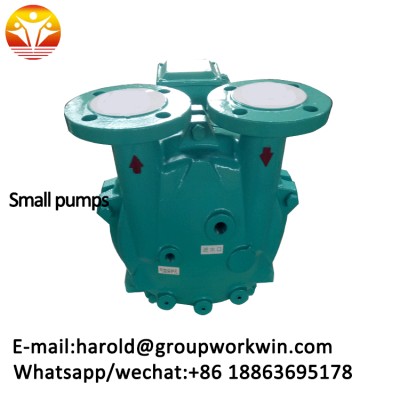

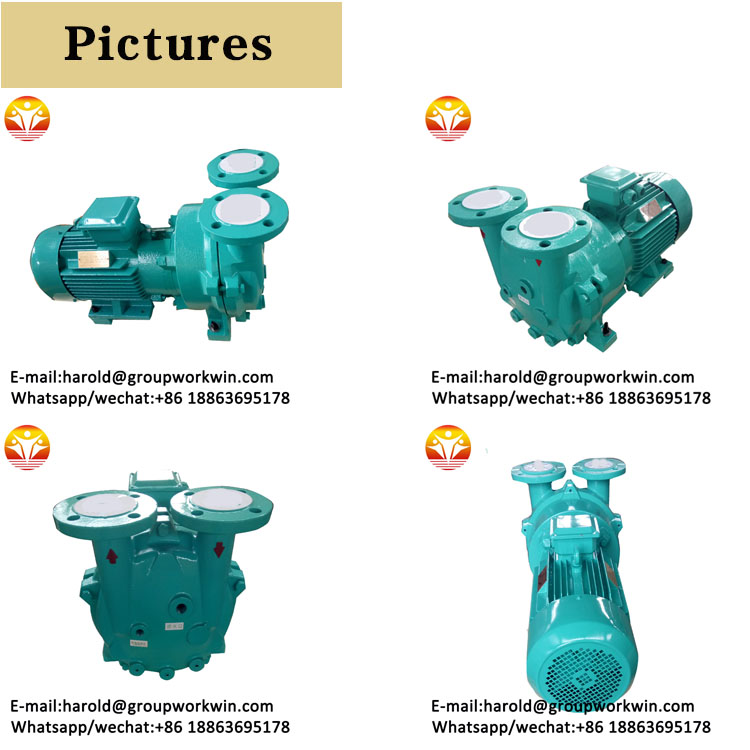

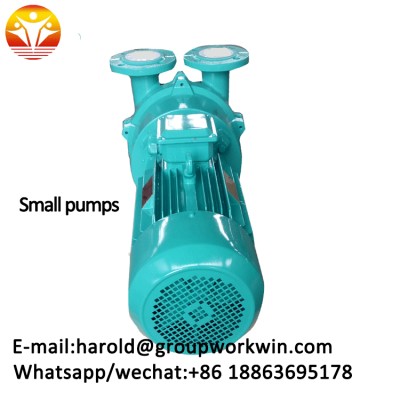

2BV series vacuum pump has small volume, compact structure, directly connected motor, while installation, put it in horizontal plane, no need chassis.

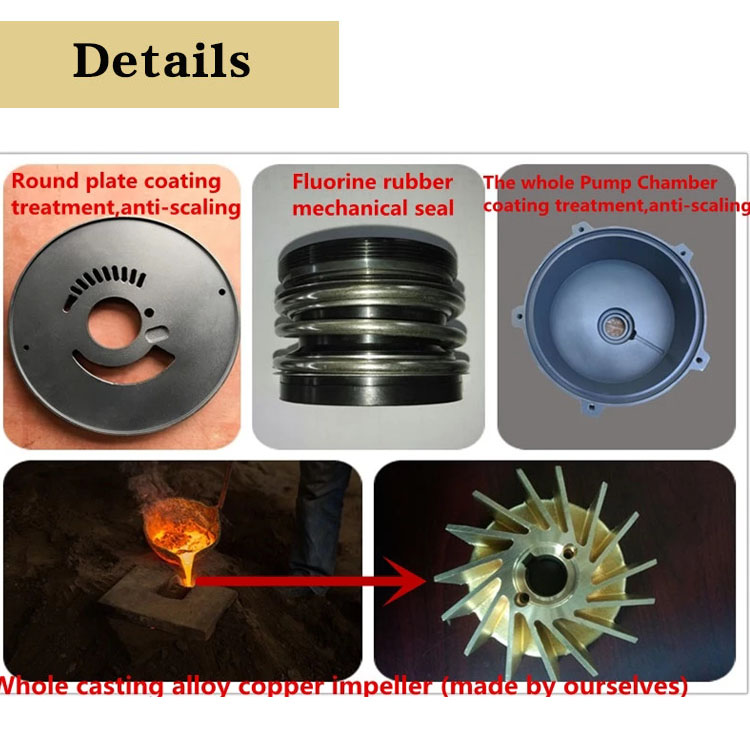

2BV series vacuum pump works basing on water ring principle, that is, impeller is installed eccentrically inside of pump body, after the pump start up, working liquid forms liquid ring(which is concentric with pump body ) inside of pump body, impeller passes motor power to liquid ring. Liquid ring pulse periodically between the impeller vanes, while in pulsation, gas is suctioned in through disk suction inlet and discharged from disk exhaust vent.
Model | Power (KW) | Capacity (m³/min) | Ultimate vacuum(-Mpa) | Intake and exhaust diameter(inch) | Weight (KG) | Size (L*W*H) | Supplying water (L/MIN) | Noise:dB(A) |
SK-0.15 | 0.55 | 0.15 | 0.096 | G1/2" | 12 | 317*176*206 | 6 |
<72
|
SK-0.2 | 0.75 | 0.2 | 0.096 | G1" | 36 | 400*200*268 | 6 | <72 |
SK-0.3 | 1.1 | 0.3 | 0.096 | G1" | 39 | 420*200*260 | 15 | <75 |
SK-0.5 | 1.5 | 0.5 | 0.096 | G1" | 41 | 428*200*275 | 19 | <75 |
SK-1.2 | 3 | 1.2 | 0.096 | G1" | 63 | 497*232*311 | 20 | <75 |
SK-1.5 | 4 | 1.5 | 0.096 | Φ40(mm) | 75 | 571*254*325 | 22 | <75 |
SK-2 | 4 | 2 | 0.096 | G1/2" | 82 | 560*250*336 | 23 | <82 |
Group Work Win is a leading manufacturer and provider of total integrated supply chain solutions.We offer the best agricultural equipments,garden equipments and accessories.Our main product lines:tractor series,agricultural cultivating machinery series,spring series,harvesting machinery series,post-processing machinery series, casting and forgings series.Our farm implements could match with domestic tractor(FOTON,YTO),and foreign famous brand tractor(JOHN DEERE,NEW HOLLAND,KUBOT etc.).
Pre-Sales Service
Provide 24-hour reply.
Provide suitable models according to clients' requirements.
Provide detailed product specifications and reasonal prices.
In-Sales Service
Supervise whole production time.
Provide product’s testing performance curve to customers.
Provide inspection pictures to customers after we finish production.
After-Sales Service
Provide installation manual.
Under correct installation, normal maintenance and using,we guarantee one-year warranty.
If product has malfunction,we’ll reply you within 24 hour and provide solution or even send technical staff to spot after receiving maintenance notification.
1. Q: Are you a manufacturer or trading company?
A: We are trading company
2. Q: What's your MOQ?
A: One set is ok.
3. Q: What's your payments terms?
A: T/T, Western Union......
4. Q: What certificates do you have?
A: CE, ISO 9001 ....
5. Q: How about the warranty?
A: 12 months warranty since delivery.
6. Q: What's the delivery time?
A: For different models,different motor specs and different material,delivery time is different,please double confirm with our sales team.
7. Q: Can you do OEM brand?
A: Yes, welcome.
8. Q: Quality reliable?
A: We have whole testing system controlled by micro-machine,testing performance curve can be sent to clients before arrange delivery.
