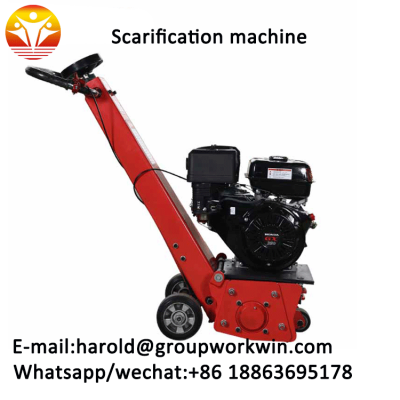

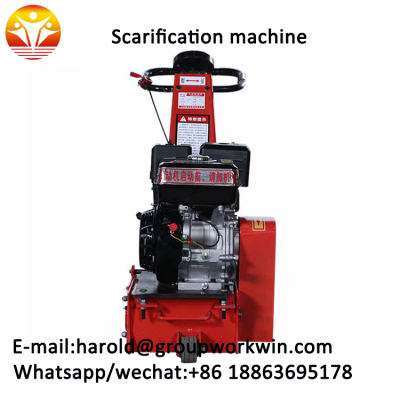

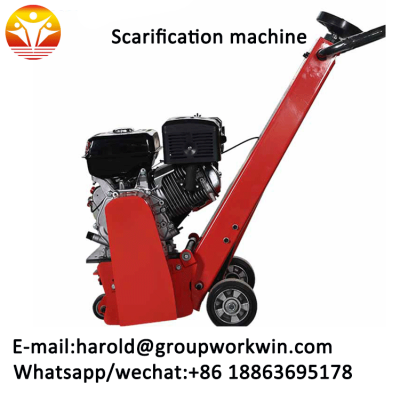

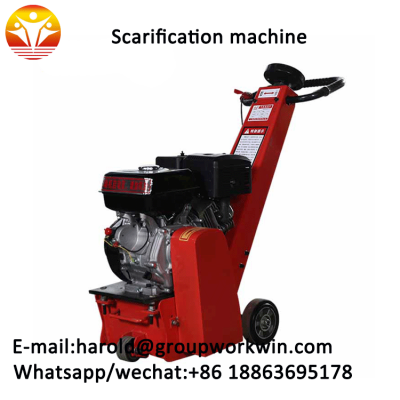

Electric Concrete Scarifying Machine

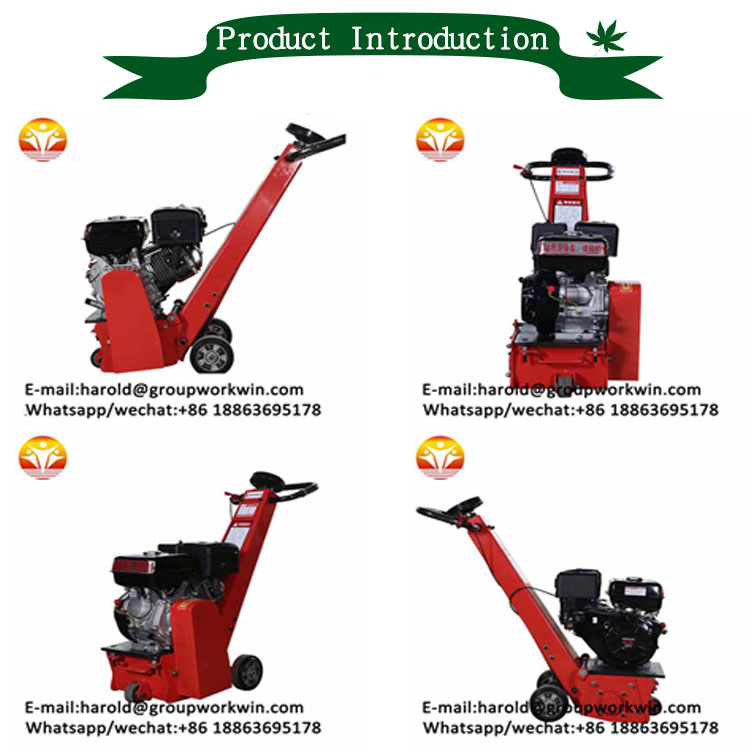

Concrete Scarifying Machine is a specially designed for concrete ground multi-function light ground machinery and equipment, widely used to bridge deck pavement, deck nap, misplaced leveling, old pavement, as well as airport runway, city square, large factory, logistics Warehousing, garage, parking and other concrete ground construction.
Technical data
Model | JHE-200 | JHE-200E | JHE-200K | JHE-200D |
Power Source | GX160 Honda/ GX270 | Siemens Electrical motor | Kohler CH270/ CH395 | 178F Diesel engine |
Horse Power | 5.5HP | 4KW | 7HP | 5.5 HP |
Working width | 200mm | 200mm | 200mm | 200mm |
Working depth | 0-5mm | 0-5mm | 0-5mm | 0-5mm |

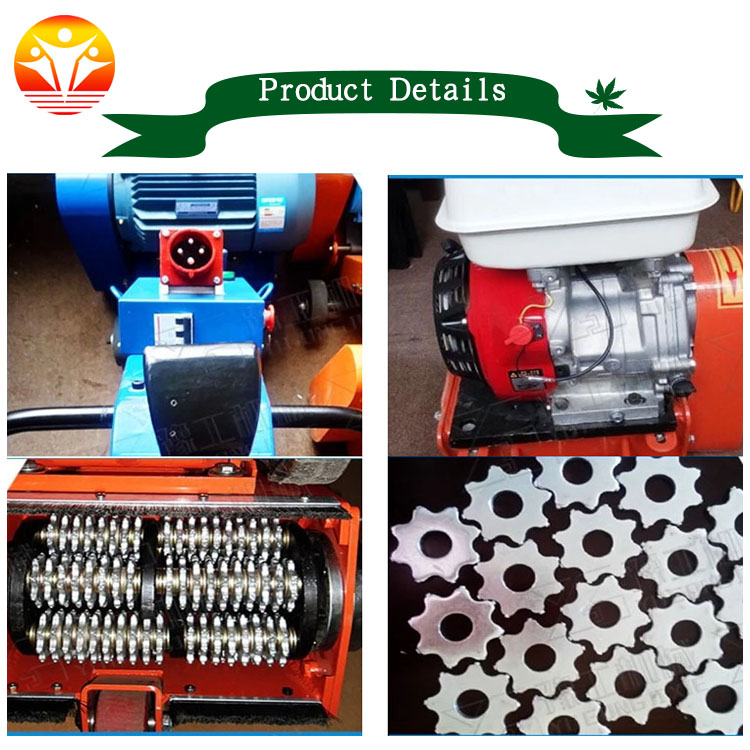

No. of shaft | 6pieces | 6pieces | 6pieces | 6pieces |
No. of cutter | 90pieces | 90pieces | 90pieces | 90pieces |
Power Drive | Manual | Manual | Manual | Manual |
Working area | 20-40 m2 / H | 20-40 m2 / H | 20-50 m2 / H | 20-40 m2 / H |
Net Weight | 105KG | 116KG | 132KG | 119KG |
L× W× H | 820×490×810mm | 820×490×810mm | 820×490×810mm | 820×490×810mm |
Drum Rotation | Down cut (clock wise) | |||
Milling mode | downward cut | |||
Depth Control | Adjustable | |||
Standard carton or according to customer requirement
Group Work Win is a leading manufacturer and provider of total integrated supply chain solutions.We offer
the best agricultural equipments,garden equipments and accessories.Our main product lines:tractor series,
agricultural cultivating machinery series,spring series,harvesting machinery series,post-processing machinery
series, casting and forgings series.Our farm implements could match with domestic tractor
(FOTON,YTO),and
foreign famous brand tractor(JOHN DEERE,NEW HOLLAND,KUBOT etc.).
Q:What is the MOQ?
A:MOQ is 1 set,we allow OEM and sample order,but the cost are paid by your side.
Q: What is the warranty time of your products?
A: The warranty time is 12 months from the date of the commissioning.After the warranty, any questions and needs,please contact us.
Q: How does your factory do regarding quality control?
A: All products have to pass strict inspection before they ship out.And we have gained ISO9001:2008 authentication.If you need other certificate and quality control,please contact us.
