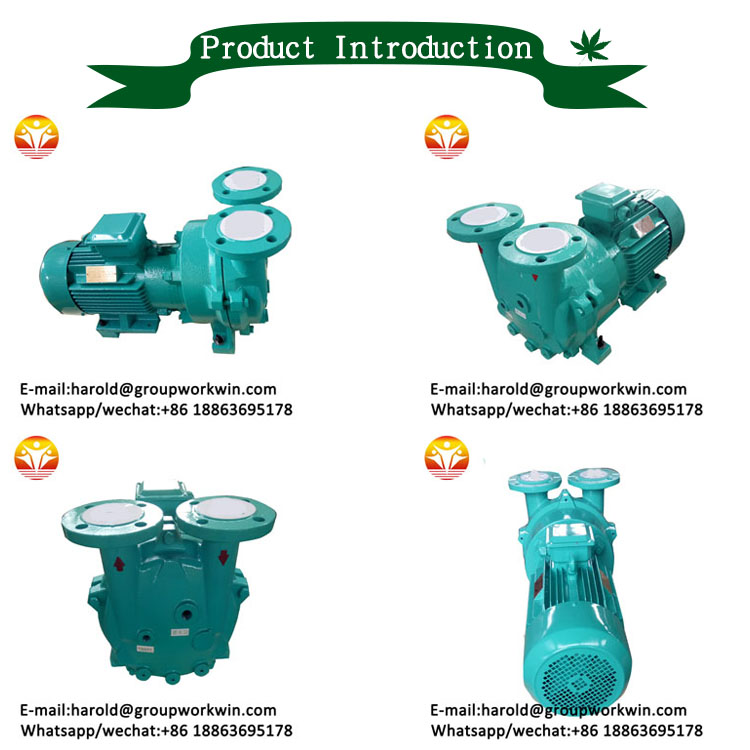

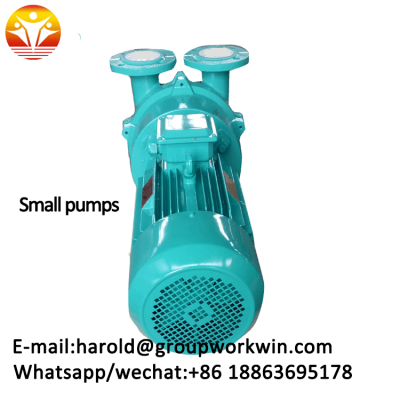

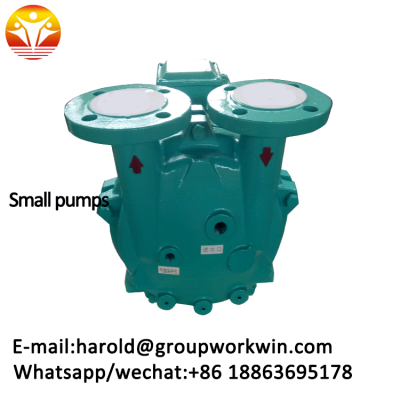

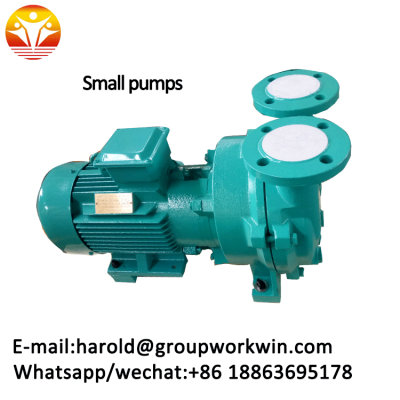

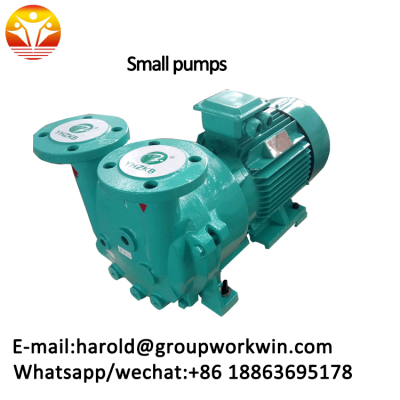

Small pump
2BV series vacuum pump has small volume, compact structure, directly connected motor, while installation, put it in horizontal plane, no need chassis.

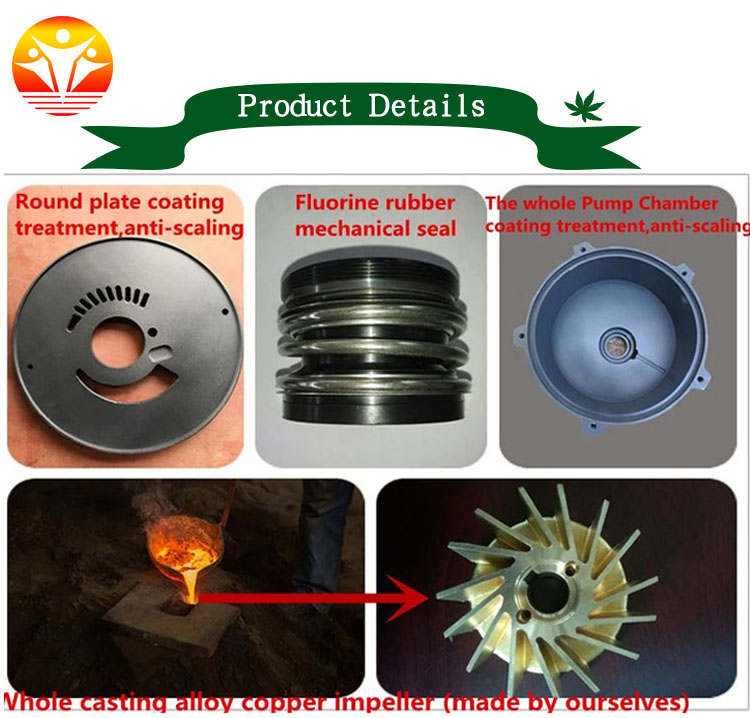

2BV series vacuum pump works basing on water ring principle, that is, impeller is installed eccentrically inside of pump body, after the pump start up, working liquid forms liquid ring(which is concentric with pump body ) inside of pump body, impeller passes motor power to liquid ring. Liquid ring pulse periodically between the impeller vanes, while in pulsation, gas is suctioned in through disk suction inlet and discharged from disk exhaust vent.
Technical data
Model | Power (KW) | Capacity (m³/min) | Ultimate vacuum(-Mpa) | Intake and exhaust diameter(inch) | Weight (KG) | Size (L*W*H) | Supplying water (L/MIN) | Noise:dB(A) |
SK-0.15 | 0.55 | 0.15 | 0.096 | G1/2" | 12 | 317*176*206 | 6 |
<72
|
SK-0.2 | 0.75 | 0.2 | 0.096 | G1" | 36 | 400*200*268 | 6 | <72 |
SK-0.3 | 1.1 | 0.3 | 0.096 | G1" | 39 | 420*200*260 | 15 | <75 |
SK-0.5 | 1.5 | 0.5 | 0.096 | G1" | 41 | 428*200*275 | 19 | <75 |
SK-1.2 | 3 | 1.2 | 0.096 | G1" | 63 | 497*232*311 | 20 | <75 |
SK-1.5 | 4 | 1.5 | 0.096 | Φ40(mm) | 75 | 571*254*325 | 22 | <75 |
SK-2 | 4 | 2 | 0.096 | G1/2" | 82 | 560*250*336 | 23 | <82 |
Standard packing
Group Work Win is a leading manufacturer and provider of total integrated supply chain solutions.We offer
the best agricultural equipments,garden equipments and accessories.Our main product lines:tractor series,
agricultural cultivating machinery series,spring series,harvesting machinery series,post-processing machinery
series, casting and forgings series.Our farm implements could match with domestic tractor
(FOTON,YTO),and
foreign famous brand tractor(JOHN DEERE,NEW HOLLAND,KUBOT etc.).
1. Q: Are you a manufacturer or trading company?
A: We are trading company
2. Q: What's your MOQ?
A: One set is ok.
3. Q: What's your payments terms?
A: T/T, Western Union......
4. Q: What certificates do you have?
A: CE, ISO 9001 ....
