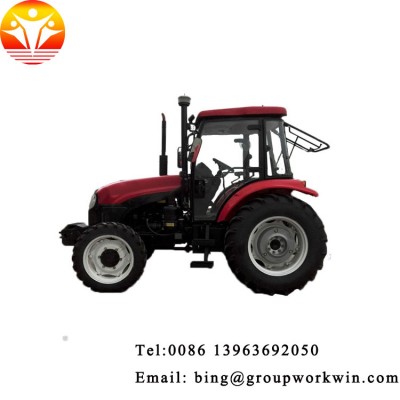

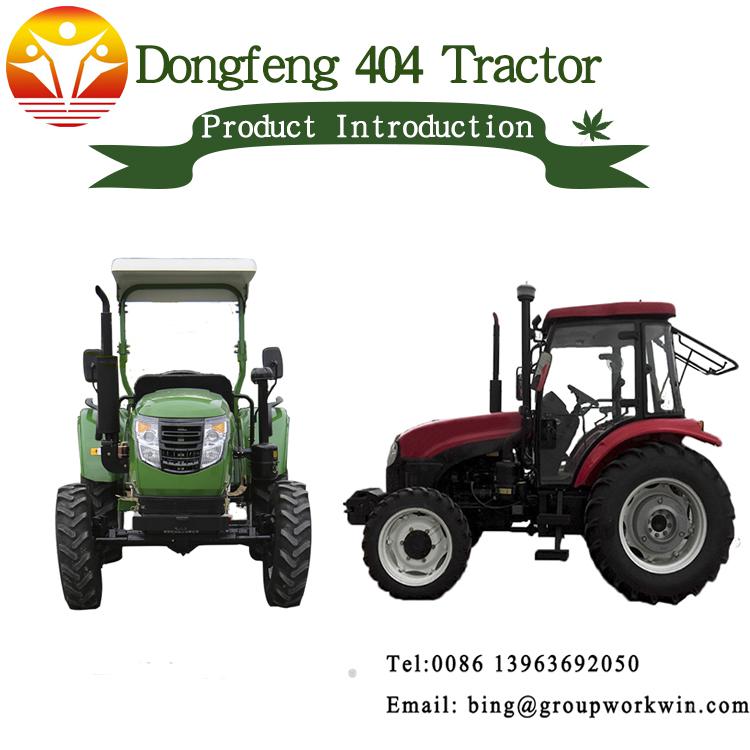

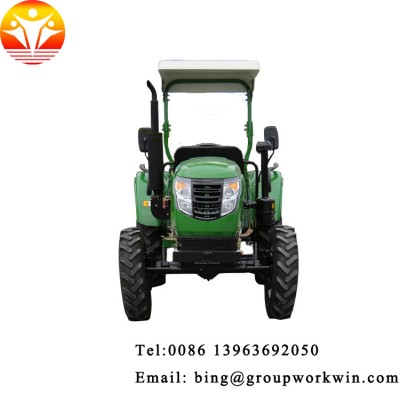

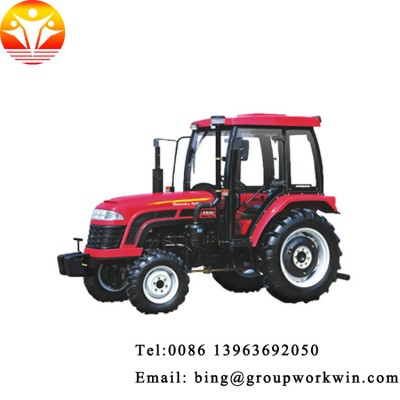

100HP Dongfeng 404 tractor with a compact, good starting performance, flexible and easy to operate.
Engine torque rise, low noise, emissions to the country 2 emission requirements, in line with national environmental emissions
requirements. Standard 9 forward gears and three backward gear, optional synchronizer
shift, do not stop can smoothly shift, more portable and efficient operation, can meet a variety of complex agronomic requirements.
Advantage
1、DF404 tractor adopts direct air pump with separation device, which has long service life, low power
loss and better safety.
2、The power output shaft with 540 RPM / 730 R / min can be adapted to different farmland operation
requirements.
3、The front and rear wheel spacing can be adjusted to meet the agronomic needs of different regions,
and the use of large capacity water tank and large capacity power frequency makes it have good heat dissipation
and start-up performance, especially suitable for harvesting operations.
4、404 the four wheel drive adopts high flower tire, and the paddy field has better performance.

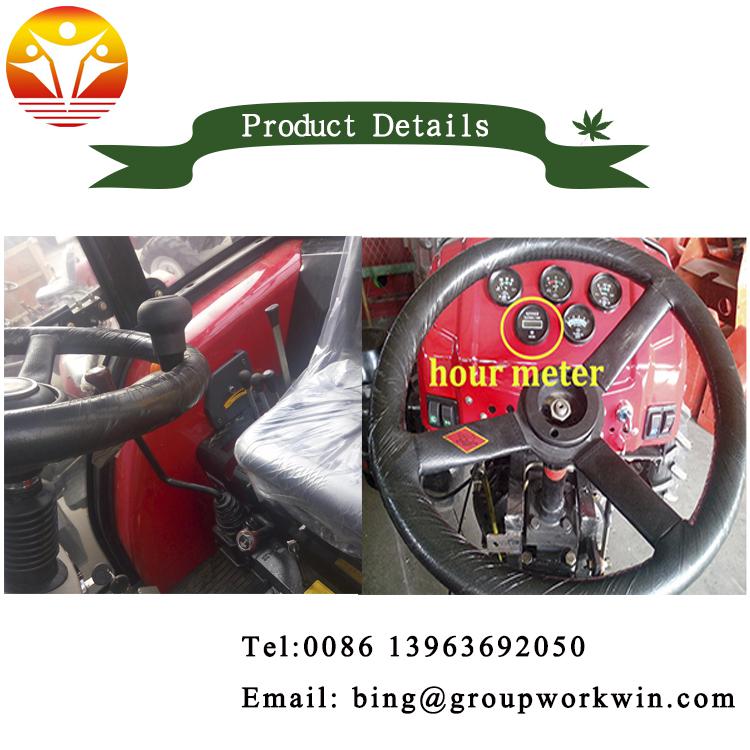

5、Dongfeng DF404 tractor adopts a full hydraulic steering gear with little operating force and good
maneuverability.
Main Uses
The tractor is used for traction and drive operation machinery to complete the mobile operation of the
self-propelled power machine. It can also do fixed work power. It consists of engine, transmission, walking,
steering,
hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices.
Main Performance Parameters
Model | Dongfeng404 |
Engine power | 90hp |
Gear box | Engagement sets, 9 forward gears, 3 backwards block, optional synchronizer shift |
Max.lift capacity | 21KN |
Model of the engine | 4RMIZT2 |
Rated speed (r/min) | 2200 |
type | Four-cylinder, inline, wet cylinder, overhead valve |
Volume (L) | 4.3 |
Bore and stroke (mm) | 105125 |
Fuel consumption | 246G / kW • h |
Compression ratio | 17:1 |
Rated speed | 720r/min |
Tread base (F/R)(mm) | 1529-2025 1512-2012 |
Wheelbase (mm) | 2300 |
Min. ground clearancen(mm) | 397 |

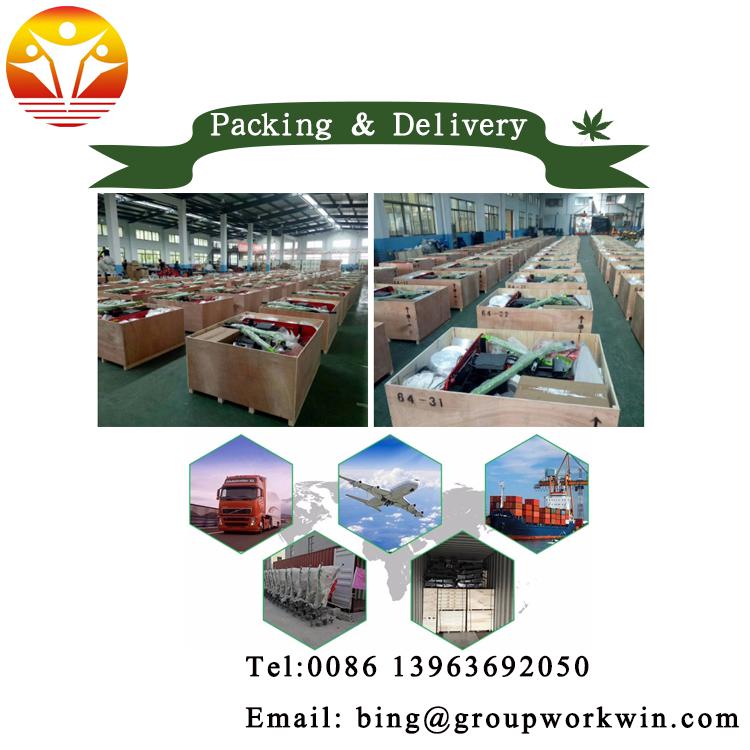

Pack: Export standard wooden box packing Type of shipping: Freighter Container

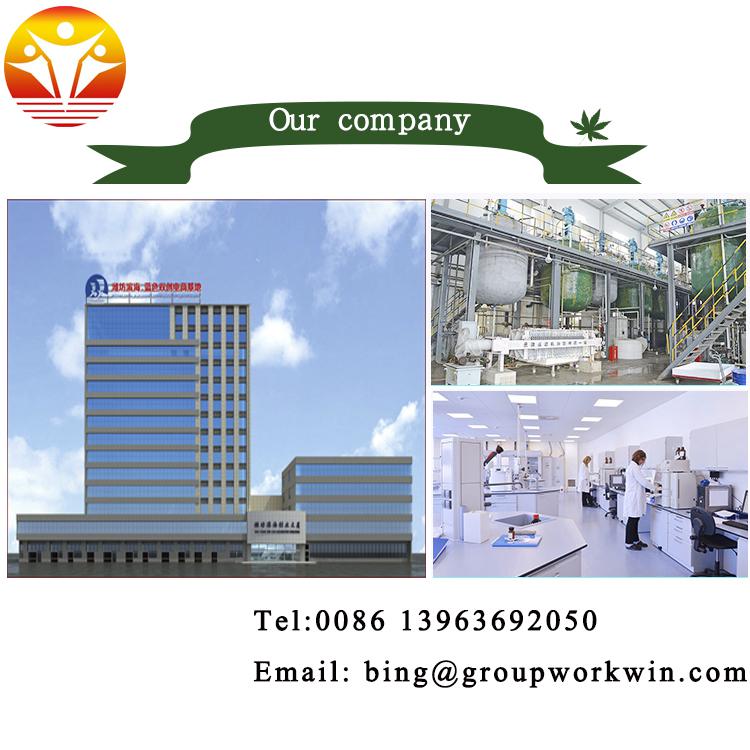

Group Work Win is a leading manufacturer and provider of total integrated supply chain solutions.We offer
the best agricultural equipments,garden equipments and accessories.Our main product lines:tractor series,
agricultural cultivating machinery series,spring series,harvesting machinery series,post-processing machinery
series, casting and forgings series.Our farm implements could match with domestic tractor
(FOTON,YTO),and
foreign famous brand tractor(JOHN DEERE,NEW HOLLAND,KUBOT etc.).
1.Why chose you?
a.We are manufacturer, our products have excellent quality and competitive price.
b.We have good after-sales services,you can find us at per 24 hours.
c.Strictly testing and checking before shipping.
2.How to deal the order?
a.Payment terms: T/T 30% as deposit, and 70% before delivery.
b.We'll show you the photos of the products and packages before you pay the balance.
3.Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local
partner to sell more World
machines in local market and supply better service.
4.What is your warranty policy?
We can supply one year warranty for our machines. We will provide parts as
free within warranty.
We can send engineer to customer place if big quality problem.
We can provide internet or calling service at any time.
