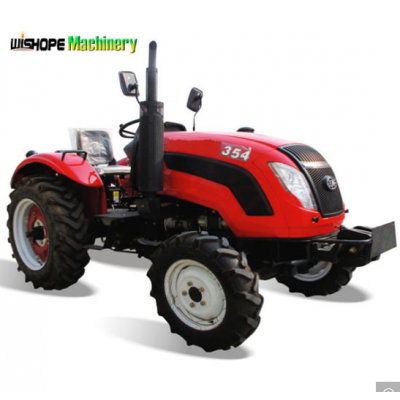

Cheap Price of Small Kubota Farm Tractor in Philippines
Welcome To Wishope Machinery !
Product Parameters
| No. | Item | Unit | Specification | |
| 1 | Model | / | WSL-354 | |
| 2 | Type | / | 4X4 (Four Wheel Drive) | |
| 3 | Overall Dimension ( L*W*H ) | mm | 3420*1560*1930 | |
| 4 | Wheel Base | mm | 1870 | |
| 5 | Tread (Front / Rear) Gauge | mm | 1200 / 1100-1300 | |
| 6 | Minimum Ground Clearance Distance | mm | 318 | |
| 7 | Minimum Working Quality | kg | 1245 | |
| 8 | Maximum Ballast Quality (Front / Rear) | kg | 112/ 80 | |
| 9 | Gear ( Forward / Reverse ) | / | 8F+2R | |
| 10 | The Theory of Velocity | km/h | Forward: 1.71-26.13 | |
| Reverse: 2.65/10.43 | ||||
11 | Engine | Model | / | Four cylinder, vertical, wawter cooled, four stroke diesel engines |
| 12 | Item No. | / | YD4L40V1 | |
| 13 | Bore X Stroke | mm | 4-93X105 | |
| 14 | Rated HP | kw | 25.7 | |
| 15 | Rated Speed | r/min | 2400 | |
| 16 | Transmission System | Clutch Type | / | 9" dry double-action |
| 17 | Gearbox Type | / | (4+1)×2 | |
| 18 | Steering and Braking System | Steering System Type | / | Hydraulic Steering |
| 19 | Braking System Type | / | disc brake | |
| 20 | Running System | Tyre Type | / | 6.0-16/9.5-24 |
| 21 | Working Device | Suspension System Type | / | Rear Three-Points Links |
| 22 | Suspension System Catagory | Catagory I | ||
| 23 | Hydraulic Output Device | / | One Level | |
| 24 | The No. of PTO Shaft Splines | / | 6 Keys | |
| 25 | The PTO Shaft Speed | r/min | 540/720 | |
Our Advantages
 | Germany Deutz Engine The famous Deutz brand engine from Germany is optional, which is more powerful, higher quality, smaller shock and lower noise. |
| Germany Luk Clutch The famous LUK clutch from Germany is optional, which is more torque, better wear-resisting, higher temperature resistance, better corrosion resistance and thermal conductivity. |  |
 | Japan NSK Axle Bearing The NSK axle bearing from Japan is optional, which is high precision, small friction coefficient and long service life. |
Ergonomics Comfort Design
|  |
 | Two Lifting Cylinders
|
Optional Configuration:
1. International famous bearing are optional.
2. The new orange streamline or classic red hood and fender is optional.
3. In order to adapt the requirements of different regions, paddy tires or dry land tires are optional.
4. In order to meet the different driving feeling, the sunshade or cab is optional.
Our Factory Advantages:
3. Strict Test Before Selling the Tractor
Whole machine zero load wheel hub grinding test.
5. Laser Cutting Equipment
Large imported laser cutting equipment has high efficiency and quality assurance.
