Rice planter
• 20 horsepower gasoline engine -- easy cope with high-speed operations;
• 20 Liters large capacity fuel tank -- a long time job guarantee;
• Walking cut off switch tranplanting -- safer, more humane;
• 6 stalls induction regulator -- land soft and hard to cope;
• Convenient foot throttle -- always oil control
• Ultra-wide range of plant spacing adjustment -- to adapt to the of each seedlings;
• Four-wheel drive control pedal -- powerful climbing;
• The largest ground clearance -- to enhance the performance of paddy fields through;

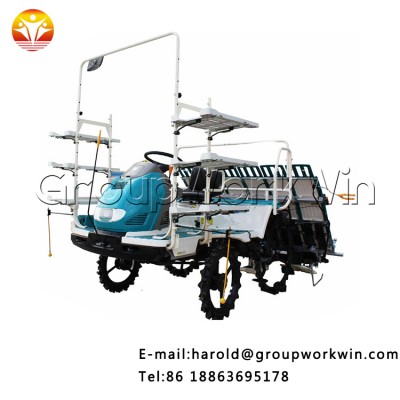

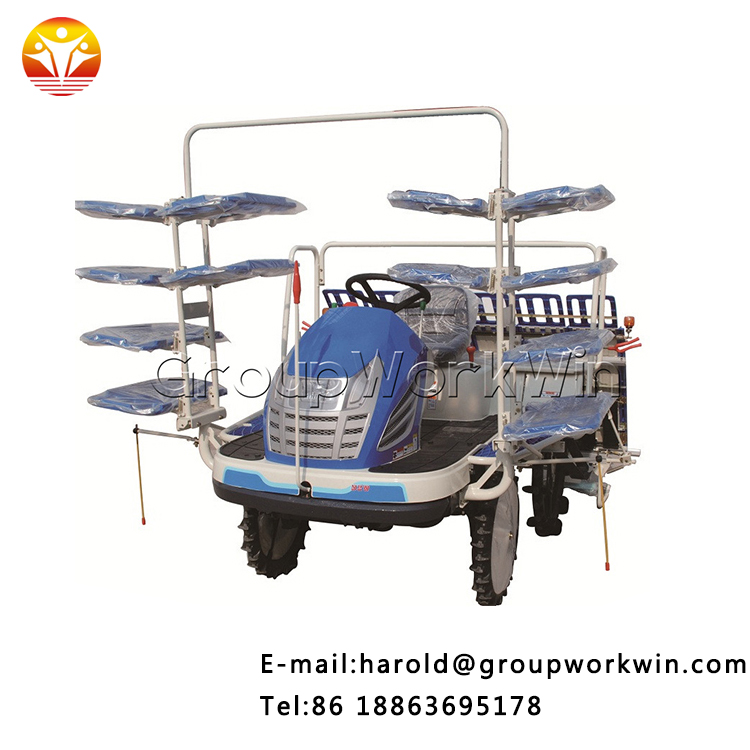

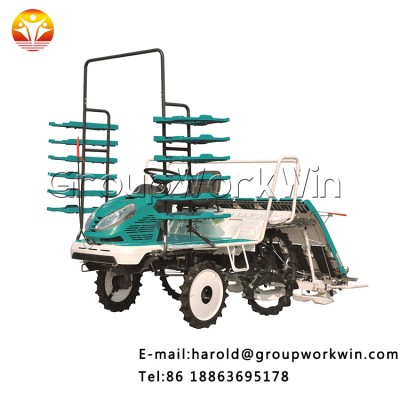

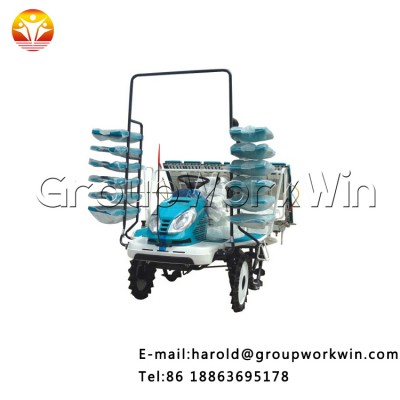

Riding Type Rice Transplanter | |||||
Type | 2BDF-8(TDS80) | ||||
Name | Riding Type Sowing Planter | ||||
Driving Mode | Four-Wheel Drive | ||||
Weight (kg) | 580 | ||||
Size | L(mm)*W(mm)*H(mm) | 3045*2390*1493 | |||
Minimum Ground Clearance (mm) | 430 | ||||
Engine | Model | BRIGGS&STRATTON 385400 | |||
Form | Air cooled 4 stroke 2 cylinder OHV gasoline engine with power | ||||
Cylinder Capacity:L (cc) | 0.627(627) | ||||
Rated Power/Speed (kW/rpm) | 11.5(15.6)/3200 | ||||
Fuel | 90#Gasoline | ||||
Fuel Tank Capacity (L) | 20 | ||||
Start Method | Electric Start | ||||
Walking Part |
Wheel
| Type | Rubber solid wheel | ||
Outside diameter(mm) | Φ650（front），Φ900（back） | ||||
Width (mm) | 67（front），140（back） | ||||
Clearance between the wheels | Front wheels (mm) | 1100 | |||
Back wheels (mm) | 1200 | ||||
Transmission mode and position | main transmission gear, HST CVT | ||||
Speed | Planting speed(m/s) | 0-1.6 | |||
Walking speed(m/s) | 0-3.6 | ||||
Planting Speed | Sowing method | Hills planting | |||
Sowing rows | 8 | ||||
Sowing rows distance (cm) | 30 | 25 | |||
Seeding rate adjustment | sowing groove wheel adjustment | ||||
Hills distance（cm） | 12、14、16、19、23、27 | ||||
Hills quantity （hills/3.3㎡） | 90、80、70、60、50、40 | ||||
Planting Capacity （h㎡/h） | ≥0.6 | ≥0.5 | |||
Fuel Consumption （kg/h㎡） | 5.7 | ||||
Wucheng Group Work Win Co.,Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
