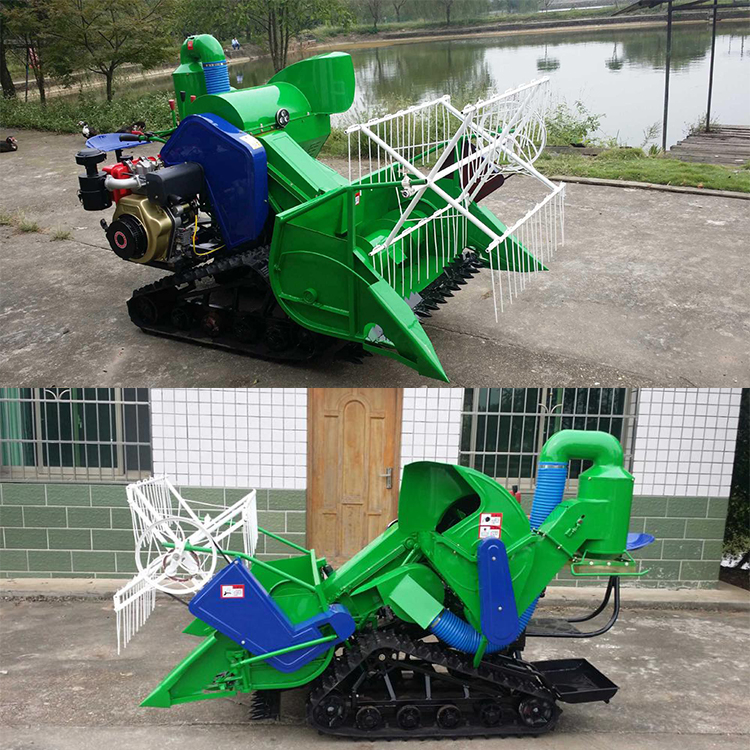

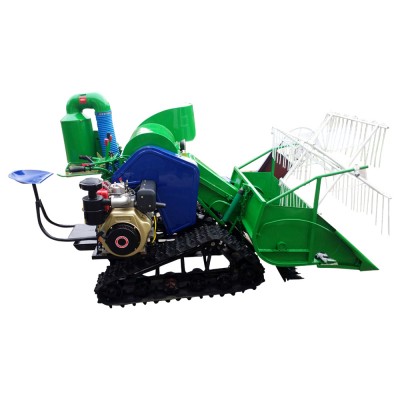

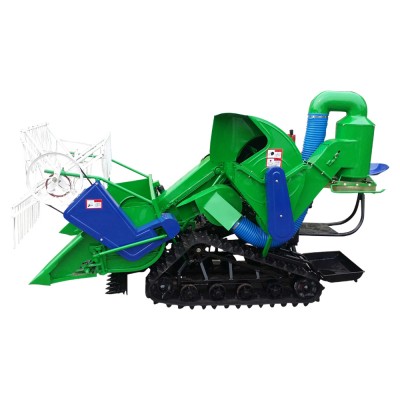

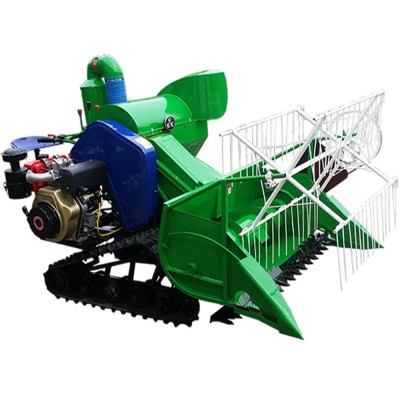

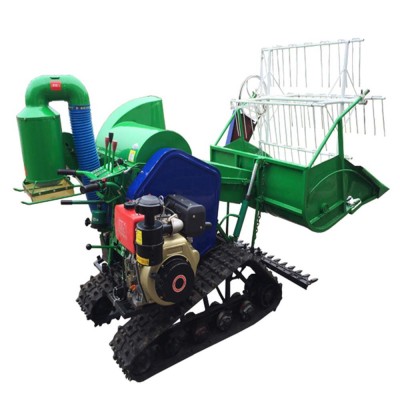

rice harvester
1 Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss
2. Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration.
3 Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
4. Down-forward straw-discharging outlet for straws with shredding mechanism to get straw pieces back to fields.Convenient for gathering by baler machine.
5 Higher ground clearance and Lower ground pressure, better for passing in paddy field.
6. New design of tension frame, Reinforce belt structure, avoiding belt being broken and track slip. And New design of all shields for easy open and maintenance.
7. Sided small grain tank of 0.3CBM and Big grain tank of 1.3CBM at Option.
| Engine | / | Type: 4-Cylinder, Vertical Engine, Water Cooled, DI- Injection, Turbocharged Engine |
| kW | Rated Power: 65 | |
| r/min | Rotating Speed: 2400 | |
| Feeding Capacity | kg/s | 4.5 |
| Minimum Ground Clearance | mm | 310 |
| Operation Speed | km/h | 1.8 to 5.3 |
| Productivity | hm2/h | 0.25 to 0.65 |
| Fuel Consumption | kg/hm2 | 18.5 to 40 |
| Cutter Type | / | Standard Type II |
| Cutting Header Auger Type | / | Telescopic Transverse Conveyor Auger |
| Reel | / | Type: Eccentic Tooth (off center) |
| mm | Diameter: 1000 | |
| pcs | Quantity: 5 | |
| Threshing Roller | pcs | Quantity: 1 |
| / | Type: Vertical Axis Flow Spike Tooth | |
| mm | External (D*L): 655*1877 | |
| Concave Sieve Type | / | Grid |
| Brake Type | / | Wet Friction Plate |
| Fan | / | Type: Centrifugal |
| mm | Diameter: 346 | |
| pcs | Quantity: 1 | |
| Rubber Crawler | / | Size: 450mm*90mm*53/56 |
| mm | Track Gauge: 1190 | |
| Rethresher Type | / | Auger Spike Tooth |
Wucheng Group Work Win Co.,Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.
2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.
3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.
