12hp hot selling Mini Tractor

Small Wheeled Tractor

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

0 /0

L/C,T/T

Quantity:

Send Enquiry
Product Details

Product Description

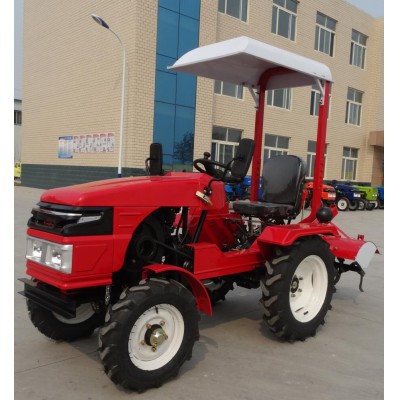

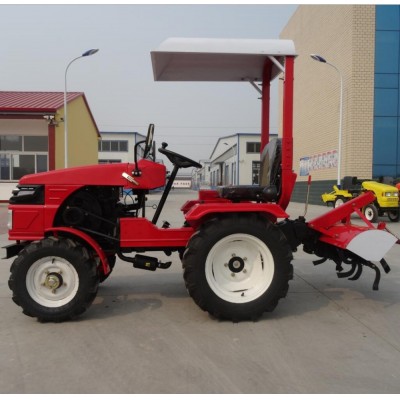

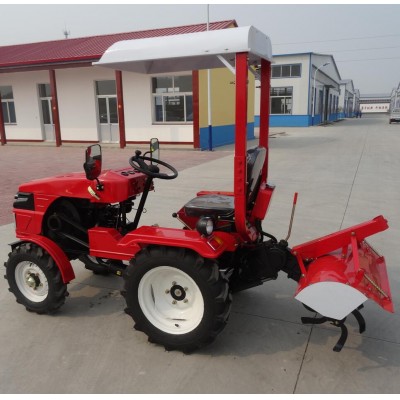

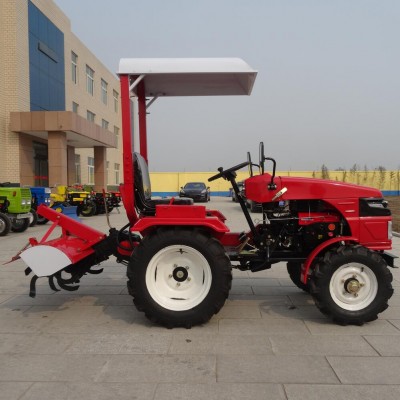

 12HP hot-selling Mini tractor, two wheels driven, 6 forward+2 reverse shift, Vee-belt connection, multi-functional !



MODELRDT-121E
Overall   dimensions:(L×W×H)2140×905×1175mm Without   tiller
Overall   dimensions:(L×W×H)2600×1000×1175mm With   tiller
Front wheel size4.00-8
Back wheel size5.00-12
Ground clearance180mm
Working weight   (with rotary tiller)485kg
Working weight   (without anything)400kg
Transmission styleVee-belt tension
Vee-belt modelB3200
Steering styleSteering wheel power steering system
BrakesTwo side wheel brake
StarterElectric start/Hand crank
SeatAdjustable
Gear style(3+1)*2; 6 Forward, 2   Reverse
Speed   Forward1.68, 2.61, 4.22, 6.79,   10.57, 17.08
Reverse1.29, 5.22
Rotary   tillerTransmission TypeMiddle Gears Transmission
Width1000mm Adjustable
Number   of blades18pcs
Working   depth100-180mm
Up   and down controlHydraulic system
EngineModelR195NDL
Type1cylinder,4-stroke,horizontal,water-cooled,diesel
Cooling   modeCondenser (Radiator)
Rated   power8.82kw/12hp
Combustion   systemDirect Injection
Cylinder   bore95mm
Piston   stroke97mm
Compression   ratio18:01
Rated   speed2400rpm
Fuel   efficiency:≤293.4gl/kw.hr
Displacement0.632L
