1500kg 37kw Euro 3 approval CE multifunctional Radlader TL1500 Agri tractor framing loader

Agricultural Loader

ISO,CE

EPA4

Farm Tractor

4WD

Gas/Diesel

0 /0

L/C,D/A,D/P

Quantity:

Send Enquiry Add To Cart
Product Details

1500kg 37kw Euro 3 approval CE multifunctional Radlader TL1500 Agri tractor framing loader


Items

TL1500 wheel loader specification

Overall Dimensions

Overall Length

4390mm

Overall Height

2720mm

Overall Width

1870mm

Brake System

Service Brake

Four Wheel Disk Brake

Parking Brake

Hand Operate

Braking Type

Air Braking

Axle

With hub reducer

Tire Model

20.5-16, 12ply

Max. Lifting Height

4500mm

Rated Load

1500kgs -1800kgs

Max. Speed

17km/h

Transmission System

Hydraulic Converter+Drive Shaft+Axles

Wheelbase

2400mm

Min Turning Radius

4950mm

Track

1345mm

Weight

4360kg

System Pressure

20Mpa

Working Hydraulic Oil Flow

104L/min

Walking Hydraulic Oil Flow

48L/min

Max. Height to the Pin

4200mm

  • TL1500 front end loader performance description


1.Unique telescopic design, widely increase its usage, and also this new design bring something fresh to the loader business, big
advantage for re-sell also.
2.Quick coupling system and compatible attachments enable the loaders can do many different kind of work. you can find all what
you need here in our factory.
3.Many options enable you to make the ideal machine in your mind, and also offer much choices about the cost.
4.Another big advantage compared with other normal loaders, ours can be equipped with rear hydraulic output & 3 point hitch, which
makes it can turn into a tractor. So you spent the money for a loader and get both loader and tractor.


Details Images

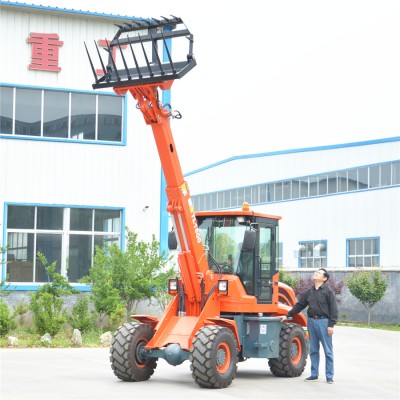

Even though TL1500 small wheel loaders have a compact and low-level design they can reach enormous lift heights. Even transport vehicles with high loading sills can be loaded without problems. The bended lifting arm and the heavy duty telescopic arm are buckling resistant and ensure precise operation even when working with heavy loads. You are always provided with an excellent view of the working tool even when the swingarm is raised and the telescopic arm is extended

TL2500 front farm tractor loader options

TL1500 small front loader features.

1.The telescopic boom which can reach 4.5m greatly increase it’s working scope.
2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.
3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Wide view cabin and two entrance makes the operating convenient and safe.
6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.

Product Usage


    • TL1500 tractor loader usage introduction

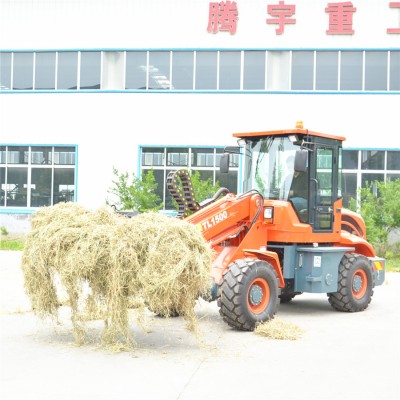

With multiple of attachments, Taian loaders are the must have machine for all sort of jobs from moving hay and straw bales,
levelling menages and arenas, towing horseboxes and trailers, moving muck, cutting grass, digging footings, trimming
hedges,stacking materials, loading lorries, clearing cow sheds, the list is endless - all with one machine.

  • Application of TL1500 farm tractor loader


Thanks to TL1500 wheel loader's unique design and speical telescopic boom ,it could better suitable for Arborists&Tree
Lopping,forestry,Construction&Demolition,Farming &Agriculture,Goverment,Council &Deucational Institutions,Horse
Stables&Breeding,Landscaping ,Plant Nurseries,Property&Eastate Maintenance,Solar farms,Trailers &Trailer Packages,Garden,Home
made,Groundskeepers,Horticultural,Mining,Arboriculture and so on ..... realized its multipurpose

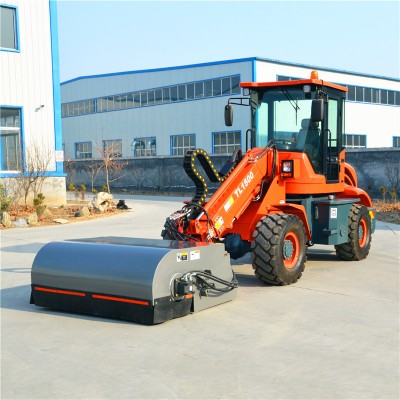

TL2500 telescopic front shovel loader avaiable attachment
