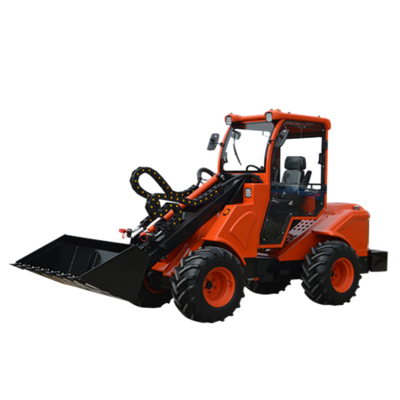

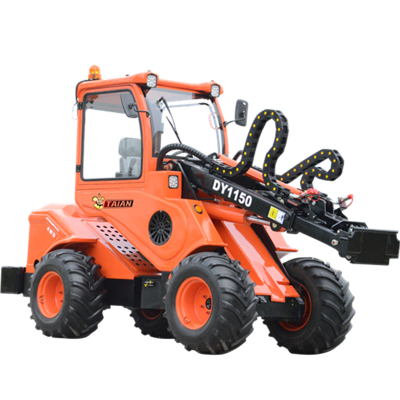

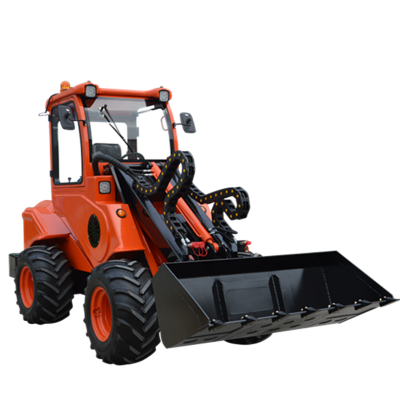

China Mini Farm Tractor TAIAN DY1150, multifunction Kubota Wheel tractor
The telescopic boom which can reach 3.5m makes it outstanding among same size machines.
Excellent self leveling makes it keep leveling from the bottom to the highest point.
Four independent hydraulic wheel motor ensures the power of it.
Many outside reachable maintenance points and the warning lights, alarms, makes the maintenance and operation safe and simple.
Opptional rear hydraulic output and the three point hitch enable customer to use some attachments at the rear part of the machine.
All kinds of attachments available, meet requirement for different felds.
Different colour and OEM acceptable.
TECHNICAL DATA | |
Model | DY1150 |
Max. length | 3410 mm |
Max. width | 1500 mm |
Max. height | 2320 mm |
Bucket capacity | 600L |
Rated loading capacity | 1600kg |
Max. loading capacity | 2600kg |
Min. turning radius | 2818mm |
Turning angle | 450 |
Speed | 17 km/h |
Weight without counterweight | 2010 kg |
Standard tire | 35X15.5-15 |
Tire pressure | 2.8 bar |
Oil tank capacity | 70L |
Pressure | 200bar |
Oil model(mineral oil) | L-HL46 |
Number of cylinder | 4 |
Cooling system | Water cooling |
Rated power | 36.5 Kw |
Rotation speed | 2600 r/min |
Fuel tank capacity | 32L |
Battery capacity | 70Ah |
Voltage | 12v |
OPPTIONS | |
Closed cabin with door | |
Heating Systerm | |
Rear hydraulic output | |
Standard Bucket | |
Counterweight | |
Collapsible Roll Bar | |
Trailer hook | |
3 point hitch |
Detailed pictures

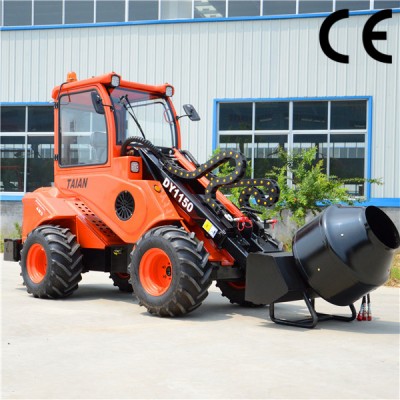

applications
Our service
1. Quick response to every inquiry.
2. Professtional and detailed answer to any of customer's questions.
3. Strict QC and in time delivery
4. Offer all relative material for customer to know and better use the machine.
5. Periodically after service follow up, offer any necessary support if needed.
6.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
7.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
8.The repairation or replacement for the parts should not exceed the warranty period.
9.The warranty is valid on the condition of all the terms listed in the contract was observed.
