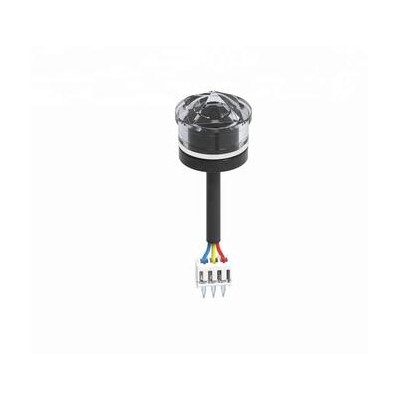

PE20  Infrared electronic level sensor water level switch for medical equipment

Product Description

Features

1)No mechanical moving parts, high reliability

2)Small size, can be installed in any direction

3)High precision level control

Application

1) humidifiers, heaters
2) pumps, bathtub, sanitary ware, medical equipment
3) Steam class level control and other needs of electrical appliances, equipment, etc

Size & Wiring

Technical data

1)working data

Note:
1. detected when the liquid is water, the water level is lower than the critical level, water vapor, water vapor or water droplets in the sensor Surface of the body assembly, thereby leading to the signal output voltage decreases.
Therefore, in practical application, taking into account the water vapor, water vapor, water droplets or affect, the set value of the threshold voltage level VT, that is, if greater than the output voltage signal terminal VT, it is determined that the level is below the critical level, the output voltage signal terminal
If less than VT, the level is higher than the critical level is determined.
VT general value of 0.25-0.5V, specific values according to water vapor, water vapor or droplets generated and the impact of process degree determined. When the liquid to be detected for the other, it will also be affected by the droplet, it is also considered press law.
2 Consider the level of fluctuation characteristics, image stabilization to join in the program logic.
3 This section level sensor is not waterproof, the entire probe can not be placed in the liquid used.
4. Actual use, the level sensor probe surface can not have too much dirt, and if so, please immediately cleaned, Cleaning the surface of the detection process can not damage it.

2)Limit parameter(Ta=25℃)
