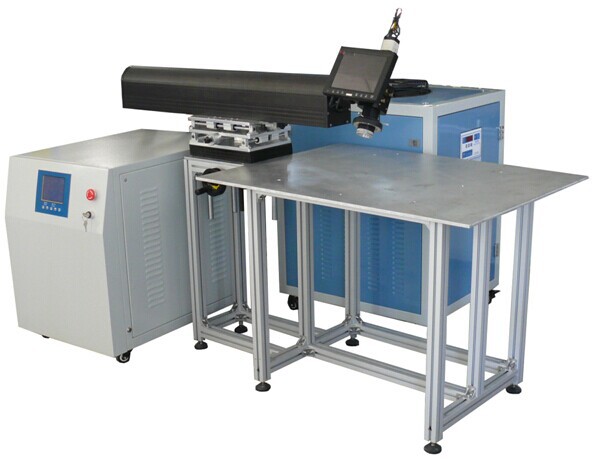

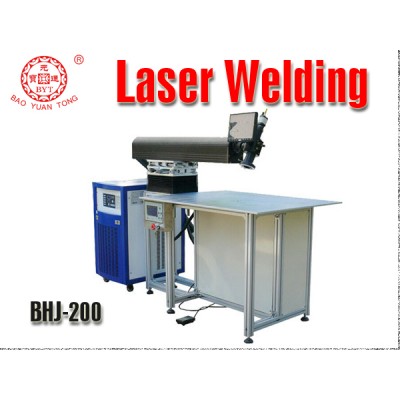

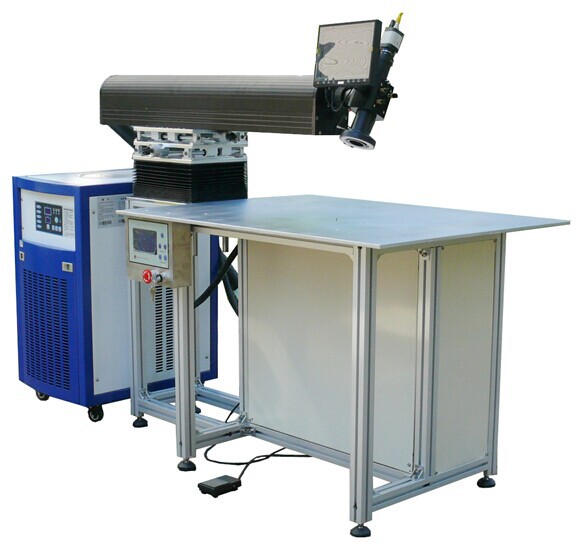

Adverting Stainless steel Signage Channel Letters laser welding machine

Model No.	BHJ-200W	BHJ-400W
Laser source	Nd3+:YAG Rod
Rated power	200W	400W
Max. single-pulse energy	90J	120J
Total power	6KW	12KW
Power supply	220V, 40A	380V, 60A
	50/60HZ compatible	50/60HZ compatible
Laser wavelength	1064nm
Facula diameter	0.30-3.0mm
Molten pool diameter	0.3mm-3mm
Pulse width	0.2ms-20ms
Pulse frequency	1-50Hz
Controlling system	Single-chip microprocessor
Operation interface	English
Observing system	CCD
Locating system	Infrared and locating rod
Working table scale	1000*750mm
3-axis itinerary	X=700mm,Y=150mm,Z=200mm
Dimensions	P1: 1160*610*1150mm	P1: 1260*710*1150mm
	P2: 1420*870*1100mm	P2: 960+710*1150mm
		P3: 1420*870*1100mm
Gross Weight	280Kg	340Kg

Features

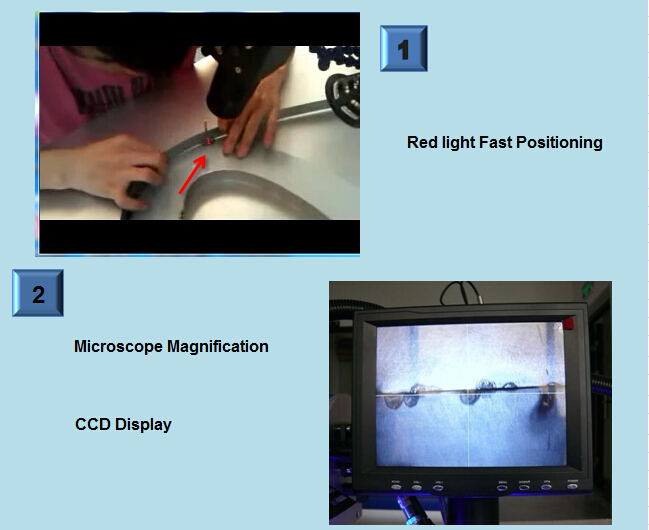

1. Red point fast positioning, CCD display, microscope optional

2. Adjustable working table allows welding from small size to big size of work piece

3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope

4. Slight distortion and affect by heating.

5. Capable of partial heating process.

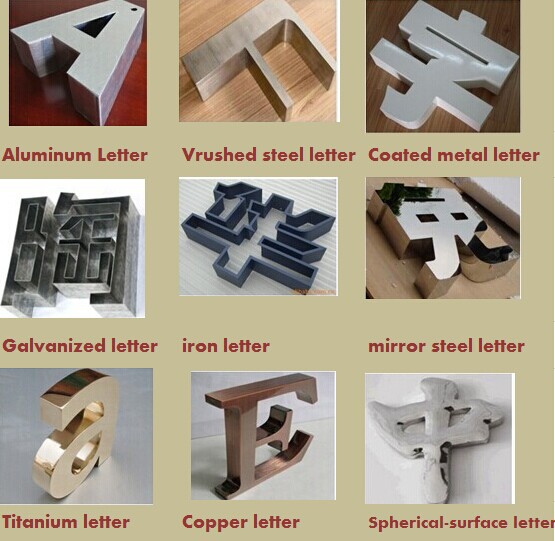

6. Able to weld with complex, profiled, or tiny letters.

7. Low noise and no pollution.

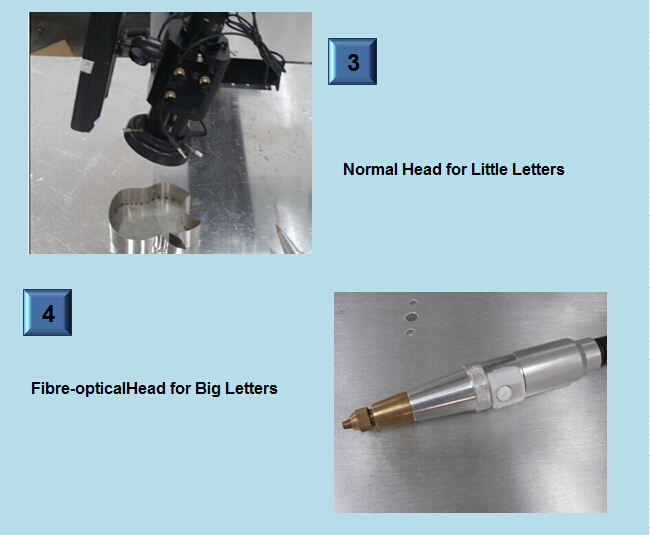

8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position

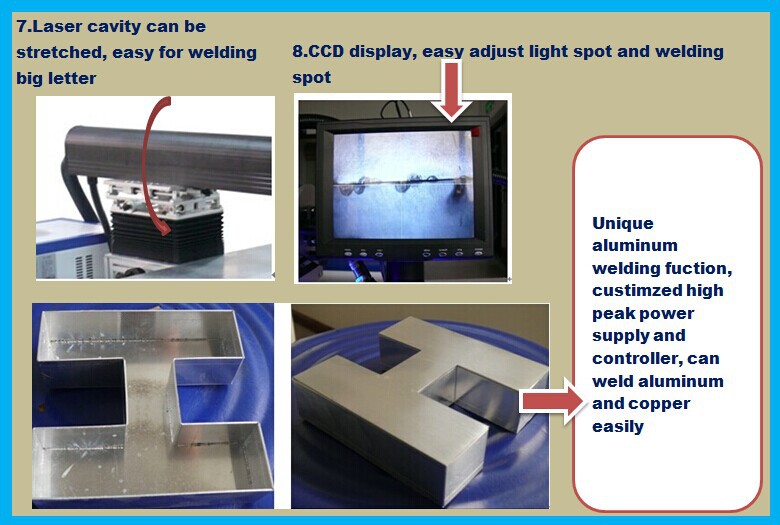

9. New metal processing (laser welding) technology brings higher quality of end products. 10. By turning a knob, laser cavity can move backward and forward freely for the convenience of big size letters welding

11. Laser cavity can move left and right, up and down easily for more space when welding big letters

12.The adjustment of parameter setting is very easy; up to 10 sets of parameters can be memorized for your option

Guaranty:

1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery , operation disk was included.
