Product Description

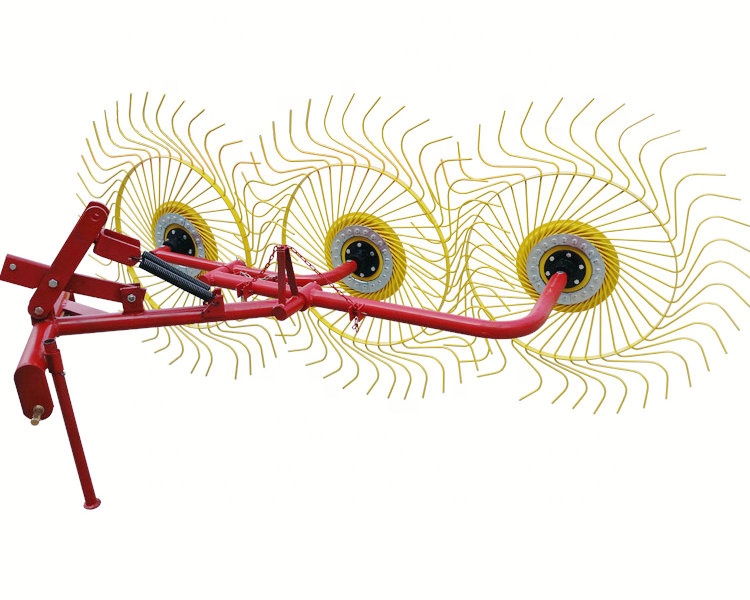

9LZ series side-delivery rake, use traditional double-side structure design, is a high performance type, transporting and folding is very simple, very suitable for small pasture. It is very simple for Swath width adjustment and perfect to adapt to the baling width. Solid suspension frame, can satisfy the more horsepower, by encrypting tine can hug scattered set of forage grass, the remnants of crop straw, and the residual film from the soil.

Type	9LZ-3.0	9LZ-4.0	9LZ-4.8
Working width(mm)	3000	4000	4800
Weight(kg)	260	380	450
Matched power(hp)	>=20	>=30	>=40
Linkage	Three point mounted
The Number of Wheei(pc)	4	6	8
Swath width(mm)	800-1500
Overall width in transport position(mm)	3200
Overall height in transport position(mm)	2300	3000	3800
The unit working speed(km/h)	5-15	10-15	10-15
Productivity(hm*2/h)	1-3	2-5	4-6
