Product Description

Condition:New

Type:Wheel Tractor, 6 cylinder,In-line,Direct injection,Water-cooled,Turbo

By wheel:4WD

Usage:Farm Tractor

Drive Type:Gear Drive

Power(W):91.9KW

Certificate:CE

Place of Origin:China (Mainland)

After-sales Service Provided:No overseas service provided

Rated speed:2200 rpm

Displacement:6.87 L

Max.torque:421 Nm

Bore/stroke:108 /125

Fuel tank capacity:145 L

Clutch type:Dry,dual

Brake:Disc, wet

Disc, wet:34.03 km/h

Speed:540/1000 rpm

Main Features

1.Parking brake: Disc brake;

2.Flexible and stable mesh sleeve shift;
3.Full hydraulic front-wheel steering with independent circuit;
4.Gearbox is 4X(2+1)×2 shuttle shift,8 forward gears+ 4 reverse gears;
5.Rear semi-independent Power Output, with 6-spline 540/1000 r/min;
6.The use of a simple floor structure and an external divider is easy for maintenance;
7.Adopt YTO engine, Chinese famous diesel engine , big brand, quality assurance;

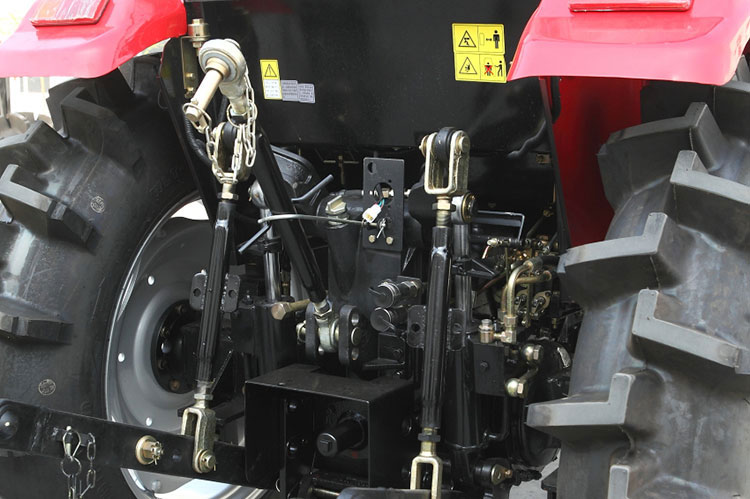

8.Rear three-point linkage, tire (front wheel+rear wheel) is 6.50-16+11.2-24
9.Planet-gear Final Transmission with small volume and large reduction ratio;
10.Planet-gear Final Transmission with small volume and large reduction ratio;
11.9-inch single or double action clutch & Semi-split lifter LT354 types of four wheels farm tractor ,full hydraulic steering;

Detailed Images

Parameter
